ESAB Warrior 300i MIG Multi-Process Welding Package

Product Description

ESAB Warrior 300i MIG Multi-Process Welding Package #0558102559

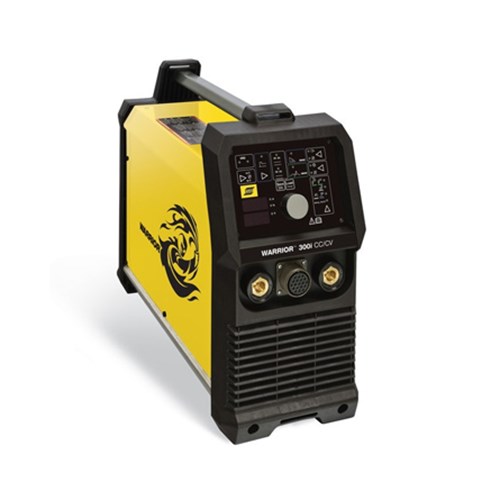

The ESAB Warrior 300i is a lightweight, portable welding machine that packs maximum power for that extra boost. Leading MiCOR Inverter Technology enables use of longer primary cables and reduces power consumption up to 25%. Adjustable inductance control offers greater arc stability for MIG welding while adjustable hot start control and force control allow for optimum stick welding.

Package Includes:

• 10 ft. (3 m) input lead
• Two male Dinse connectors 50 mm

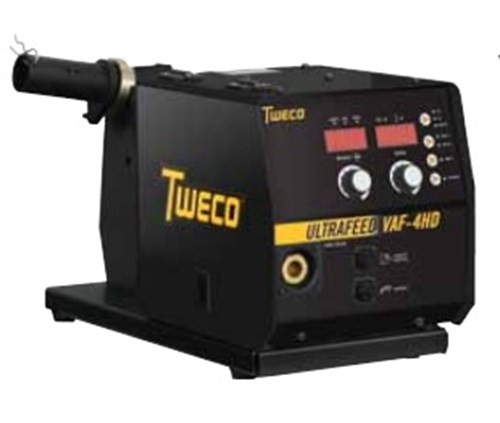

• Ultrafeed 4HD wire feeder
• Interconnect and power cable

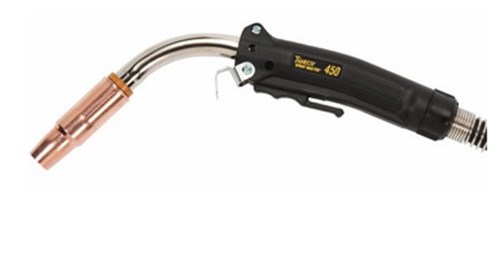

• 15 ft. (4.6 m) Spray Master 450 MIG gun
• Ground clamp with 10 ft. (3 m) lead
• Victor ESS3-FG-580 argon flowgauge regulator
• 12.5 ft. (3.8 m) gas hose
• Industrial cart

Welding Process

• Welding-GMAW (MIG/MAG – Metal Inert Gas / Metal Active Gas)
• Welding-GTAW (TIG – Tungsten Inert Gas)
• Welding-SMAW/MMA (Stick)

• Specifications
  Input Voltage	208-230/400/460 VAC, 1/3 ph, 50/60 Hz
  Supply Voltage Range	177-529 VAC
  Current Range	10-300 A (1 ph) 10-400 A (3 ph)
  Maximum Input Current	53.2 A (280 V/3 ph) 49.1 A (230 V/3 ph) 28.6 A (460 V/3 ph)
  Maximum Output	400 A
  Rated kVA	14.4 kW @ 400 A
  Maximum Open Circuit Voltage	80 VDC
  Maximum Welding Output MIG (GMAW) @ 104°F (40°C)	300 A/29 V @ 25% duty cycle, 1 ph 230 A/25.5 V @ 60% duty cycle, 1 ph 180 A/23 V @ 100% duty cycle, 1 ph 400 A/34 V @ 25% duty cycle, 3 ph 300 A/29 V @ 60% duty cycle, 3 ph 220 A/25 V @ 100% duty cycle, 3 ph
  Maximum Welding Output Stick (SMAW) @ 104°F (40°C)	300 A/32 V @ 25% duty cycle, 1 ph 230 A/29.2 V @ 60% duty cycle, 1 ph 180 A/27.2 V @ 100% duty cycle, 1 ph 400 A/32 V @ 60% duty cycle, 3 ph 300 A/28.8 V @ 60% duty cycle, 3 ph
  Maximum Welding Output TIG (GTAW) @ 104°F (40°C)	300 A/2 V @ 25% duty cycle, 1 ph 230 A/19.2 V @ 60% duty cycle, 1 ph 180 A/17.2 V @ 100% duty cycle, 1 ph 400 A/26 V @ 25% duty cycle, 3 ph 300 A/22 V @ 60% duty cycle, 3 ph 220 A/18.8 V @ 100% duty cycle, 3 ph
  Approvals	IEC 60974-1 CSA E60974-1, UL 60974-1
  Protection Class	IP23S
  Dimensions, L x W x H	17.7 x 8.2 x 16.5 In. (450 x 210x 420 mm)
  Weight	54 lbs. (24.5 kg)

• ESAB Warrior 300i Power Source #0558102558 – Fact Sheet
• ESAB Warrior 300i Power Source #0558102558 – Brochure
