Lincoln Electric Frontier® 400X Engine-Driven Welder (Perkins®)

Product Description

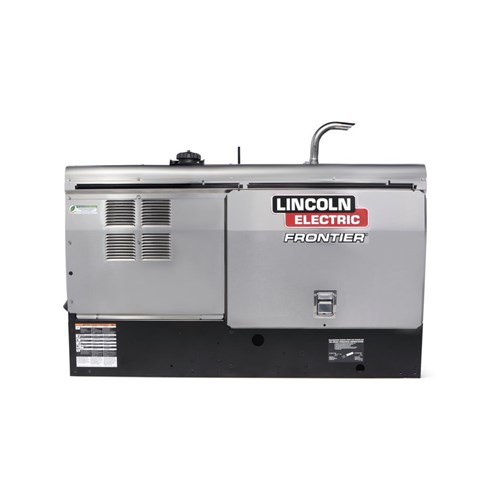

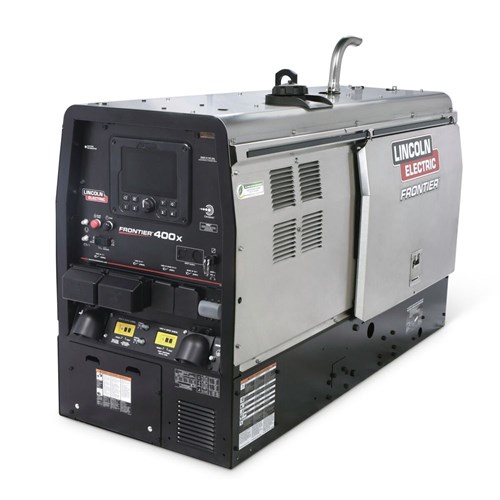

Lincoln Electric Frontier® 400X Diesel Welder/Generator with Perkins® Engine #K3484-1

Lincoln Electric’s Frontier® 400X with diesel engine is a powerful, engine-driven welder/generator designed to deliver best-in-class arc performance with the latest innovations in welding technology.

Built for versatility, this machine supports multi-process welding with optimized CC and CV modes, as well as specialized modes for mechanized equipment and advanced GMAW applications, including STT® and pulse welding.

Whether you’re working on-site or in the shop, the Frontier® 400X provides unmatched precision, productivity, and reliability.

Highlights

• Multi-process capability, optimized for CC and CV modes
• Powerful and reliable Perkins® diesel engine
• Next-gen display with operator-focused enhancements
• Versatile performance for a range of applications

Industries

• Construction
• Heavy Fabrication
• Oil & Gas
• Pipe Welding
• Industrial Maintenance

What’s Included

• Frontier® 400X Pipe machine only

Benefits of the Frontier® 400X Pipe (Perkins®)

• Superior Pipeline Performance
• Multi-process Versatility
• Reliability and Power
• Exceptional Arc Control

• Welding Machine Weights & Dimensions

  Dimensions (H x W x D)	35.9 in x 25.3 in x 60 in (913 mm x 643 mm x 1524 mm)
  Net Weight	1035 lbs (469 kg)

  General Specifications

  Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Orbital MIG
  IEC Rating	325A / 33V / 100% @ 104°F (40°C)
  Max Rating	400A / 26V / 60% @ 104°F (40°C)
  Output Range by Mode	Stick (SMAW): 30 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts DC TIG (GTAW): 5 – 400 Amps Arc Gouging (CAC-A): 60 – 400 Amps
  Open Circuit Voltage	71 Peak OCV at 1800 RPM
  Rated Gouging Carbon Diameter	5/16″ (8.0 mm)
  Machines Communication Technology	CrossLinc

  Engine Driven Welding Specs

  Single Phase Auxiliary Output	10,000 Watts Continuous / 11,500 Watts Peak, 120/240V
  Three Phase Auxiliary Output	11,000 Watts Continuous / 12,500 Watts Peak, 240V
  Auxiliary Output Frequency	60 Hz
  Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R

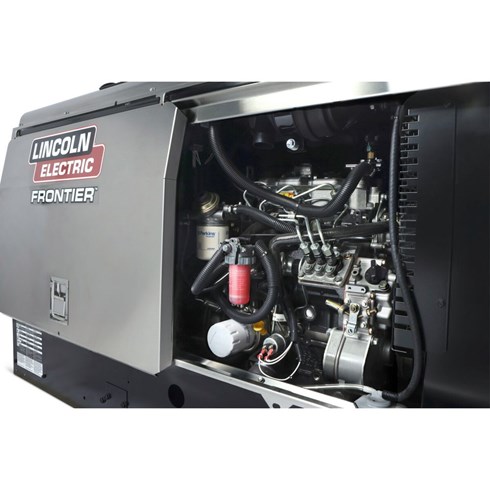

  Engine Brand & Model	Perkins® 403F-15T
  Engine Description	3 Cylinder Turbocharged Water Cooled Diesel Engine
  Engine Horsepower	24.7 hp (18.4 kW)
  Engine Block Size & Displacement	91 cu. in (1.5 L) Bore x Stroke – 3.3 in x 3.5 in (84 mm x 90 mm)
  Emissions Rating	US EPA Tier 4 Final
  High Idle Operating Speed @ Rated Output	1800
  Low Idle Operating Speed	1440
  Sound Rating @23 ft. (7m)	67 dBA at Low Idle 71 dBA at High Idle
  Fuel Tank Size (US gal.)	20 US gal.
  Fuel Tank Size (L)	75.7 L
  Oil Capacity (qts.)	6.4 qts.
  Oil Capacity (L)	6.0 L
  Coolant Capacity (US gal.)	1.8 US gal.
  Coolant Capacity (L)	6.8 L

  Application

  Typical Application

  Construction Mining Railroad Maintenance Cross Country Pipeline Construction & Field Erection Maintenance & Repair Offshore Oil & Gas Power Generation Shipbuilding Structural Fabrication Structural Welding

  Warranty

  Warranty

  3 Years Parts and Labor – Engine warranted separately by engine manufacturer

  SHIPPING DIMENSIONS
  Height:	35.90 Inches
  Width:	25.30 Inches
  Length:	60.00 Inches
  Weight:	1100 Lb(s) 0 Oz
