Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®)

Name: Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®)
SKU: K3485-1
Availability: InStock

0 customer reviews

Sold: 0

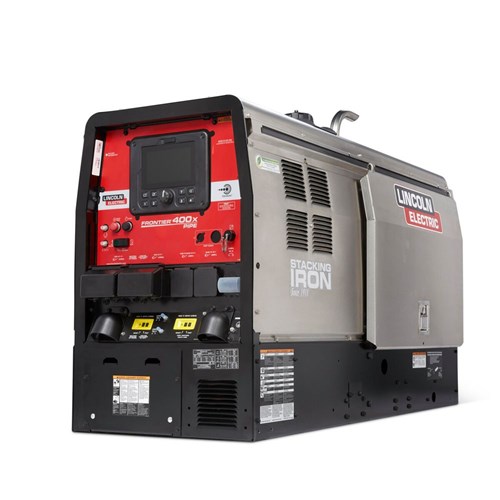

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®)

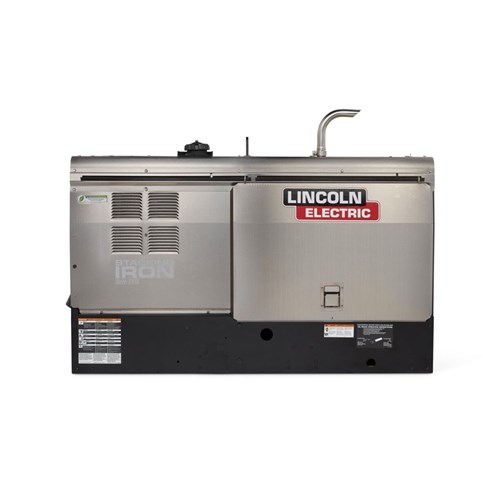

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®) - Image 2

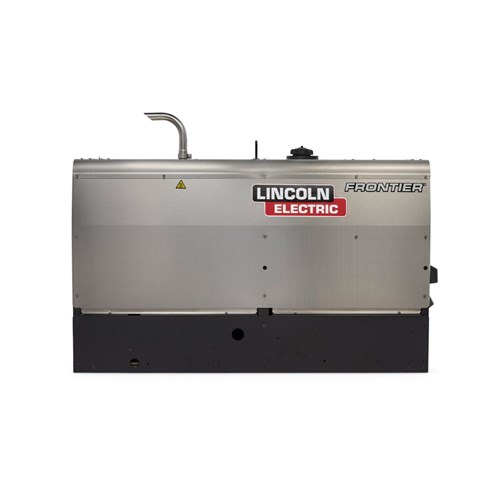

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®) - Image 3

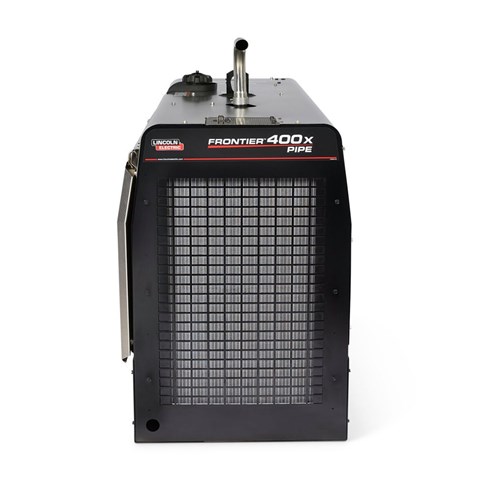

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®) - Image 4

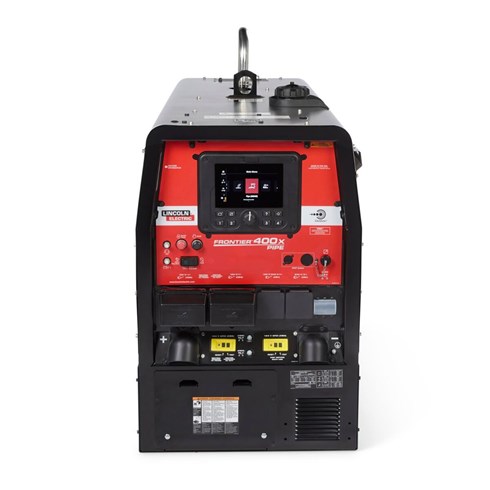

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®) - Image 5

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®) - Image 6

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®) - Image 7

Lincoln Electric Frontier® 400X Pipe Engine-Driven Welder (Perkins®) - Image 8

View details

Current price is: $23,792.71. Original price was: $26,378.00.

10% off

SKU: K3485-1 Categories: Engine-Driven Welder Welder

Product Description

Lincoln Electric Frontier® 400X Pipe Welder/Generator with Perkins® Engine #K3485-1

The Lincoln Electric Frontier® 400X Pipe (Perkins®) is a state-of-the-art, engine-driven welder/generator designed specifically for pipeline welding applications.

With its best-in-class arc performance and cutting-edge welding technology, this machine provides maximum versatility and productivity on the job site.

Powered by a reliable Perkins® diesel engine, the Frontier 400X Pipe features multi-process welding capability, including optimized CC and CV modes for various welding needs.

Highlights

Multi-process capability optimized for CC, CV, mechanized equipment and advanced GMAW processes
Specialized pipe mode designed for downhill pipe applications with a DC-style arc
Best-in-class arc performance for precision and consistency in challenging environments
Powered by a trusted, durable Perkins® engine

Industries

Pipeline Welding
Oil & Gas
Construction
Heavy Fabrication

What’s Included

Frontier® 400X Pipe machine only

Benefits of the Frontier® 400X Pipe (Perkins®)

Superior Pipeline Performance
Multi-process Versatility
Reliability and Power
Exceptional Arc Control

Welding Machine Weights & Dimensions

Dimensions (H x W x D)	35.9 in x 25.3 in x 60 in (913 mm x 643 mm x 1524 mm)
Net Weight	1035 lbs (469 kg)

General Specifications

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Orbital MIG
IEC Rating	325A / 33V / 100% @ 104°F (40°C)
Max Rating	400A / 26V / 60% @ 104°F (40°C)
Output Range by Mode	Stick/Pipe (SMAW): 30 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts DC TIG (GTAW): 5 – 400 Amps Arc Gouging (CAC-A): 60 – 400 Amps
Open Circuit Voltage	71 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter	5/16″ (8.0 mm)
Machines Communication Technology	CrossLinc

Engine Driven Welding Specs

Single Phase Auxiliary Output	10,000 Watts Continuous / 11,500 Watts Peak, 120/240V
Three Phase Auxiliary Output	11,000 Watts Continuous / 12,500 Watts Peak, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Perkins® 403F-15T
Engine Description	3 Cylinder Turbocharged Water Cooled Diesel Engine
Engine Horsepower	24.7 hp (18.4 kW)
Engine Block Size & Displacement	91 cu. in (1.5 L) Bore x Stroke – 3.3 in x 3.5 in (84 mm x 90 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1440
Sound Rating @23 ft. (7m)	67 dBA at Low Idle 71 dBA at High Idle
Fuel Tank Size (US gal.)	20 US gal.
Fuel Tank Size (L)	75.7 L
Oil Capacity (qts.)	6.4 qts.
Oil Capacity (L)	6.0 L
Coolant Capacity (US gal.)	1.8 US gal.
Coolant Capacity (L)	6.8 L

Applications

Typical Application

Construction
Mining
Railroad Maintenance
Cross Country Pipeline
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Pipeline & Offshore
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
