Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder

Name: Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder
SKU: K3485-2
Availability: InStock

0 customer reviews

Sold: 0

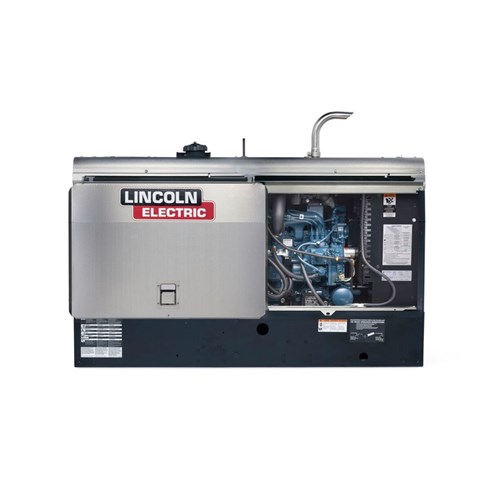

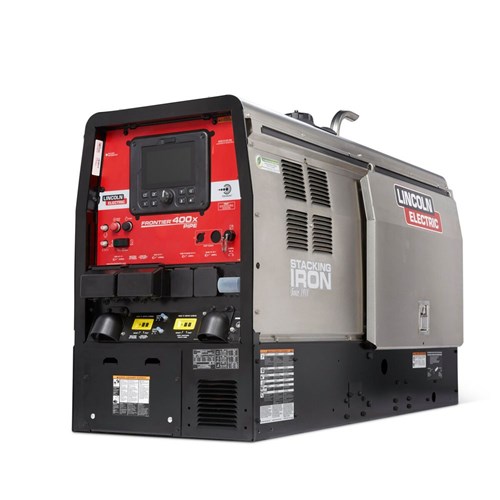

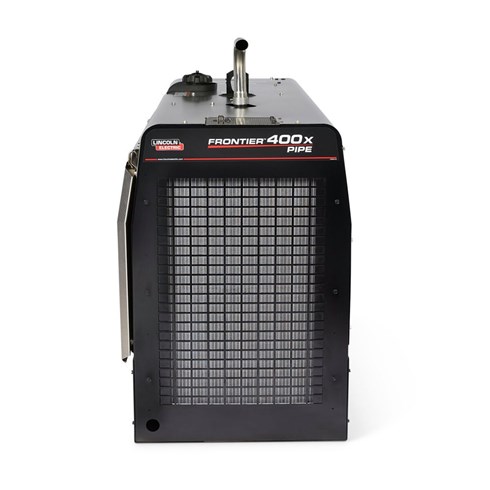

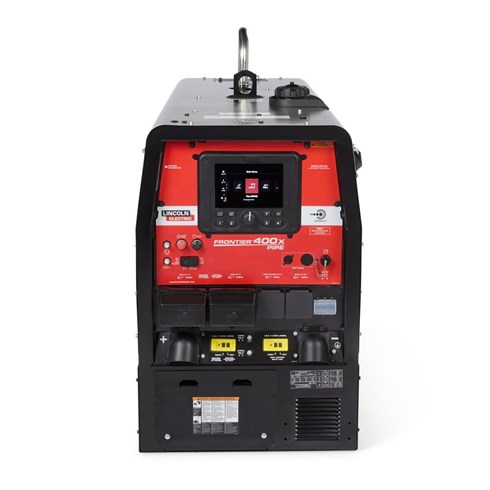

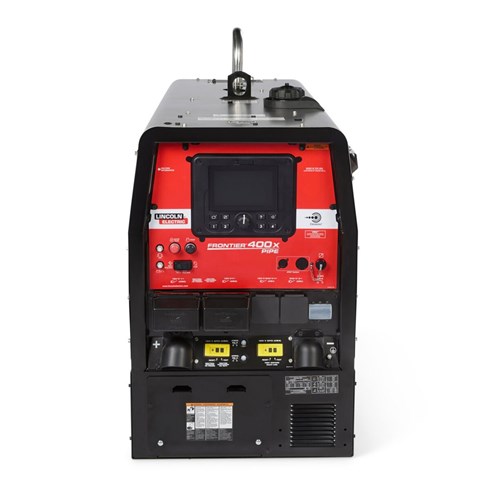

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 2

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 3

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 4

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 5

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 6

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 7

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 8

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 9

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 10

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 11

Lincoln Electric Frontier® 400X Pipe (Kubota®) Engine-Driven Welder - Image 12

View details

Current price is: $24,470.99. Original price was: $27,130.00.

10% off

SKU: K3485-2 Categories: Engine-Driven Welder Welder

Product Description

Lincoln Frontier® 400X Pipe Diesel Engine-Driven Welder/Generator with Kubota® Engine #K3485-2

The Lincoln Electric Frontier® 400X Pipe is a cutting-edge engine-driven welder/generator designed for versatility and optimal performance across a wide range of multi-process welding applications.

Powered by a Kubota® diesel engine, this machine delivers best-in-class arc performance, supporting both constant current (CC) and constant voltage (CV) processes.

Its specialized Pipe mode is specifically engineered to produce a classic DC-style arc ideal for downhill pipe welding.

Highlights

400 amps of DC multi-process welding power
Specialized Pipe mode for downhill pipe applications
Next-gen display with operator-focused features, including save/recall memories and maintenance reminders
Auto-stop/start technology for fuel savings and engine efficiency
CrossLinc® Technology for remote output control
Multi-process capability supporting CC and CV welding, as well as STT® and pulse welding
Kubota® engine for reliable and powerful performance

Industries

Pipeline Welding
Oil & Gas
Construction
Heavy Fabrication
Infrastructure

What’s Included

Frontier® 400X Pipe Welder

Benefits of the Frontier® 400X Pipe Welder/Generator

Optimized DC-style arc for optimized performance in pipe welding
Next-gen display includes features like save and recall for weld settings
Auto-stop/start technology reduces unnecessary engine idling
Remote control with CrossLinc® promotes safety and efficiency
Supports a wide range of multi-process welding applications

Product Weights & Dimensions

Dimensions (H x W x D)	35.9 in x 25.3 in x 60 in (913 mm x 643 mm x 1524 mm)
Net Weight	1035 lbs (469 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G) Orbital MIG
IEC Rating	325A / 33V / 100% @ 104°F (40°C)
Max Rating	400A / 26V / 60% @ 104°F (40°C)
Output Range by Mode	Stick/Pipe (SMAW): 30 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts DC TIG (GTAW): 5 – 400 Amps Arc Gouging (CAC-A): 60 – 400 Amps
Open Circuit Voltage	71 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter	5/16″ (8.0 mm)
Machines Communication Technology	CrossLinc

Engine Driven Welders

Single Phase Auxiliary Output	10,000 Watts Continuous / 11,500 Watts Peak, 120/240V
Three Phase Auxiliary Output	11,000 Watts Continuous / 12,500 Watts Peak, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R

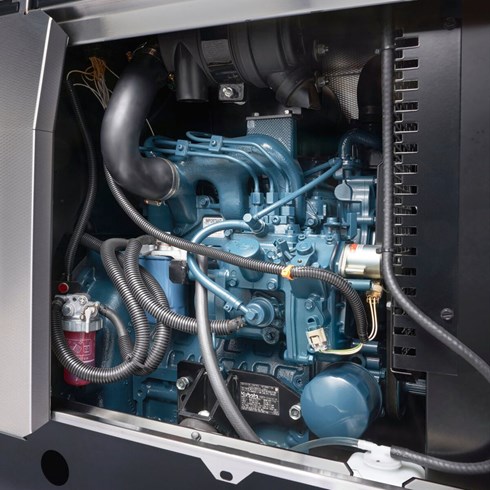

Engine Brand & Model	Kubota® D1503-M
Engine Description	3 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	24.8 hp (18.5 kW)
Engine Block Size & Displacement	91.4 cu. in (1.5 L) Bore x Stroke – 3.27 in x 3.64 in (83 mm x 92.4 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1400
Sound Rating @23 ft. (7m)	67 dBA at Low Idle 71 dBA at High Idle
Fuel Tank Size (US gal.)	20 US gal.
Fuel Tank Size (L)	75.7 L
Oil Capacity (qts.)	6.4 qts.
Oil Capacity (L)	6.0 L
Coolant Capacity (US gal.)	1.8 US gal.
Coolant Capacity (L)	6.8 L

Application

Typical Application

Construction
Mining
Railroad Maintenance
Cross Country Pipeline
Construction & Field Erection
Heavy Fabrication
Offshore
Oil & Gas
Pipeline & Offshore
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
