Lincoln Electric Maverick® 325X Engine-Driven Welder Ready-Pak® 1

Product Description

Lincoln Electric Maverick® 325X Engine-Driven Welder/Generator (325A) Ready-Pak® 1 #K3581-1-RP1

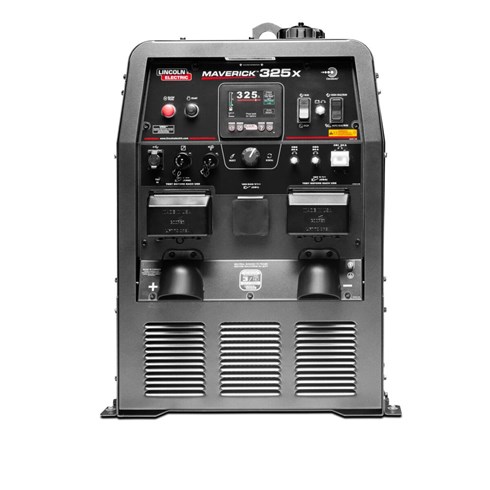

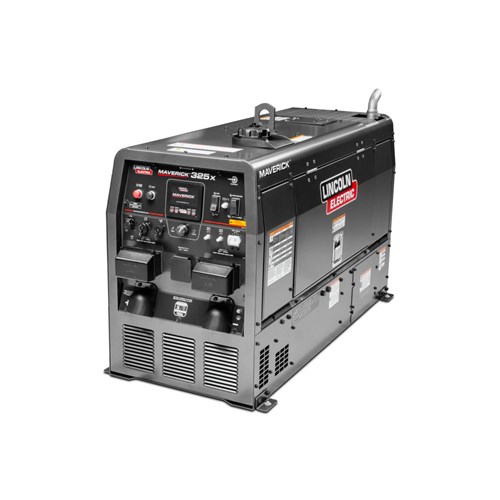

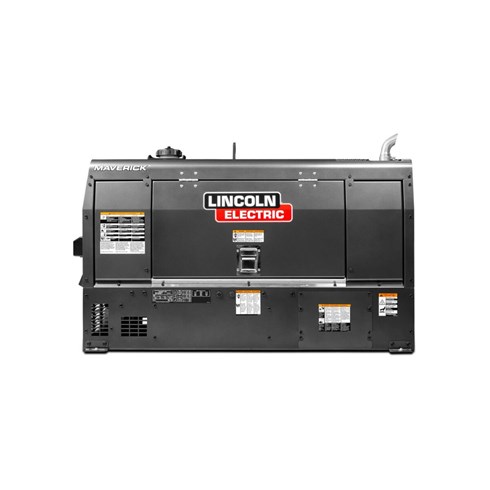

The Lincoln Electric Maverick® 325X is an engine-driven welder designed for those who need the perfect balance of size, performance, and innovation.

With the ability to produce 325 amps of welding power, the Maverick® 325X with diesel engine provides exceptional performance for a wide range of multi-process welding applications.

The Ready-Pak® 1 comes preassembled with the welder, trailer, fender and light kit, cable rack, welding cables, ground clamps, and electrode holder, offering a complete solution for easy transport and immediate use on the job site.

Highlights

• 325 amps of DC multi-process welding power
• Advanced, engine-driven design for reliability in demanding environments
• Compact size without sacrificing performance
• Ready-Pak® 1 includes all necessary components for quick setup and operation
• Ideal for on-site welding and remote locations

Industries

• Construction
• Pipeline Welding
• Repair and Maintenance
• General Fabrication
• Agriculture

What’s Included

• Maverick® 325X (Kubota®) | K3581-1
• Small Two-Wheel Welder Trailer | K2635-1
• Weld Cable – Tweco® Male & Open End (2/0, 350A, 60%) – 10 ft (3 m) | K2483-2
• EH-305HD Electrode Holder – 300A, 60% Duty Cycle | K909-7
• Cable Rack for Welder Trailers | K2640-1
• Fender and Light Kit for Welder Trailers | K2639-1
• Weld Cable – Tweco® Male & Female (2/0, 350A, 60%) – 50 ft (15.3 m) | K2485-2
• Insulated CT40FS Female Connector | K2487-1
• Weld Cable – Tweco® Male & 0.53 Lug (2/0, 350A, 60%) – 50 ft (15.3 m) | K2484-2
• GC-300 Work Clamp – 300A, 60% Duty Cycle | K910-1

Benefits of the Maverick® 325X Ready-Pak® 1

• All-in-one preassembled package for convenient on-site welding
• Powerful, compact Maverick® 325X is ideal for locations with limited space but high-performance needs
• Easy transportation
• Reliable engine-driven performance

• Machines

  Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
  IEC Rating	325A / 33V / 100% @ 104°F (40°C)
  Max Rating	400A / 29V / 60% @ 104°F (40°C)
  Output Range by Mode	Stick (SMAW): 35 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 13 – 40 Volts DC TIG (GTAW): 25 – 250 Amps Arc Gouging (CAC-A): 60 – 400 Amps
  Open Circuit Voltage	80 Peak OCV at 3600 RPM
  Rated Gouging Carbon Diameter	5/16″ (8.0 mm)
  Machines Communication Technology	CrossLinc

  Engine Driven Welders

  Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
  Auxiliary Output Frequency	60 Hz
  Receptacle Types	NEMA 5-20R NEMA 14-50R
  Engine Brand & Model	Kubota® D902
  Engine Description	3 Cylinder Naturally Aspirated Water Cooled Diesel Engine
  Engine Horsepower	24.8 hp (18.5 kW)
  Engine Block Size & Displacement	54.8 cu. in (.90 L) Bore x Stroke – 2.83 in x 2.90 in (72 mm x 73.6 mm)
  Emissions Rating	US EPA Tier 4 Final
  High Idle Operating Speed @ Rated Output	3600
  Low Idle Operating Speed	2500
  Sound Rating @23 ft. (7m)	Idle: 73.5 dB Max Load: 79.6 dB
  Fuel Tank Size (US gal.)	11.5 US gal.
  Fuel Tank Size (L)	50 L
  Oil Capacity (qts.)	3.9 qts.
  Oil Capacity (L)	3.7 L
  Coolant Capacity (US gal.)	0.9 US gal.
  Coolant Capacity (L)	3.3 L

  Application

  Typical Application

  Construction Cross Country Pipeline Construction & Field Erection Maintenance & Repair Oil & Gas Power Generation Structural Fabrication Structural Welding

  Warranty

  Warranty

  3 Years Parts and Labor – Engine warranted separately by engine manufacturer
