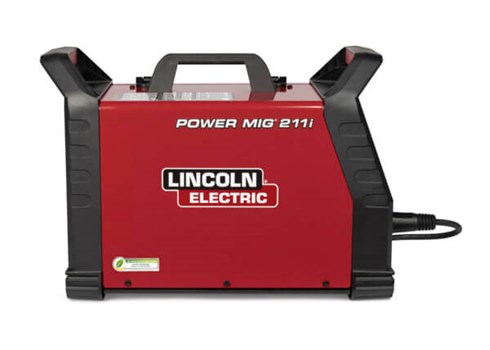

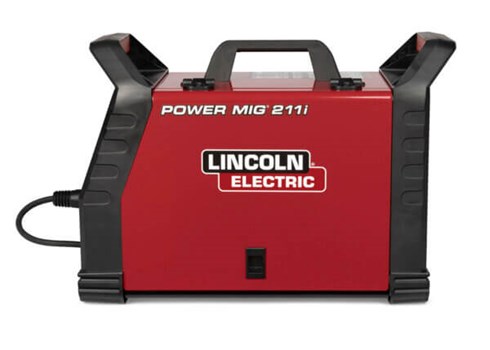

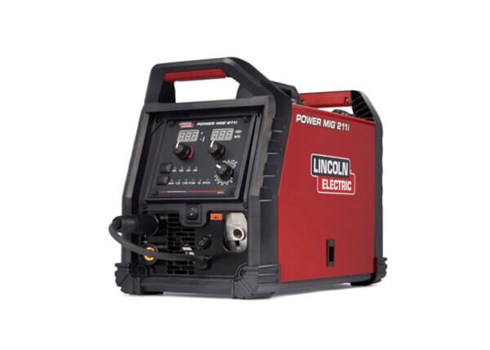

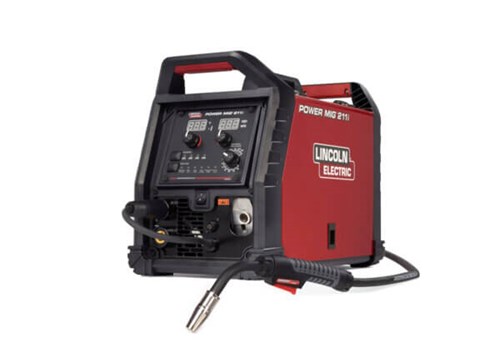

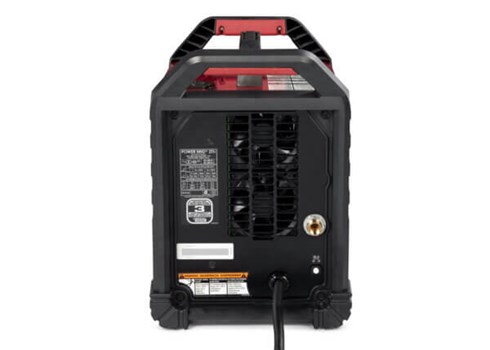

Lincoln Electric Power MIG® 211i MIG Welder (110-230V 1PH)

Product Description

Lincoln Power MIG® 211i MIG Welding Machine #K6080-1

SOLID, DEPENDABLE WELDING

The POWER MIG® 211i MIG welder is a straightforward and dependable machine that’s ideal for MIG and flux-cored welding. This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly – and when it’s time to move, the sleek case with multiple lift points make it extremely portable. If you’re looking for an incredibly simple, reliable MIG welder that won’t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.

Features of the Power MIG 211i

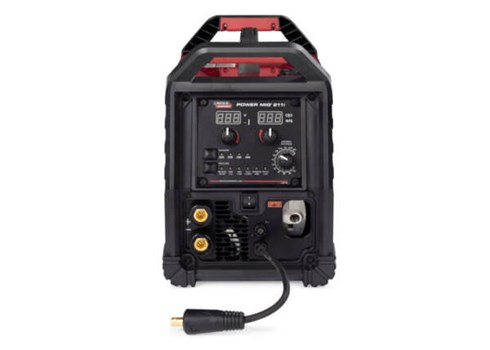

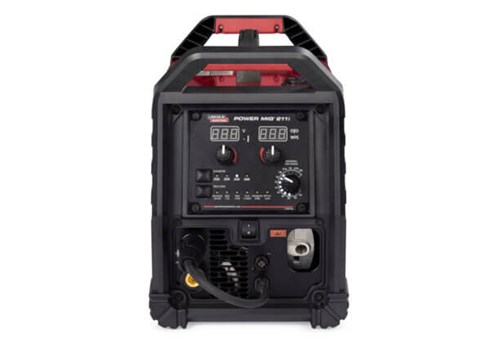

• Simple user interface – Seven segment display with basic knob controls.
• Process Capabilities – MIG, Flux-Cored
• Dual Input Voltage – 120V and 230V inputs so you can plug into any common power supply.
• Ergonomic Case – Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Robust and Reliable Wire Drive – Ensures proper and consistent feeding for optimal welding experience.
• Lightweight and Portable – Only 41 lbs

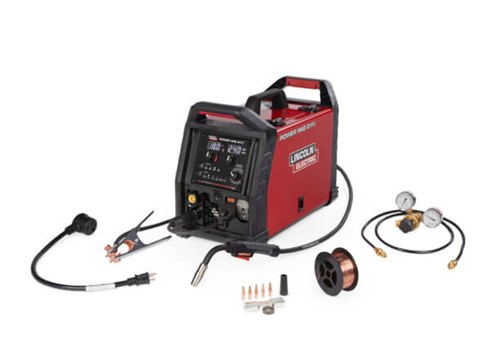

What’s Included

• Magnum® PRO 100L Gun 10 ft. (3.0 m) (K4528-1)
• 230V to 120V power cord adapter
• Work Cable and Clamp
• Adjustable Gas Regulator and Hose
• Gas Nozzle
• Gun Cable Liner (pre-installed in gun)
• Spindle Adapter
• Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631)
• 0.030-0.035in. (0.8 – 0.9 mm) Drive Roll (Installed)
• 0.030 – 0.045 in. (0.8 – 1.1 mm) Knurled Drive Rolls
• and 0.025 – 0.035 in. (0.6 – 0.9 mm) Wire Guide (Installed)

• Power MIG® 211i Specifications
  Phase 1: Input Voltage #1 (Voltage/Phase/Hertz)	120/1/60
  Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle)	MIG 95A/18.8/60% 75A/17.8V/100%
  Phase 1: Input Current at Max Rated Ouput #1 (Current)	20A
  Phase 1: Input Voltage #2 (Voltage/Phase/Hertz)	230/1/60
  Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle)	MIG 175A/22.8V/30% 90A/18.6V/100%
  Phase 1: Input Current at MAX Rated Output #2 (Current)	22.5A
  IEC Rating	IP21S
  Max Rating	211A
  Output Range by Mode	MIG: 20-211A
  Number of Operators per Machine	1
  Machines Communication Technology	analog
  Work Lead Connector Type	Dinse
  Welding Gun Cable Assembly Length	Magnum PRO 100L
  Work Cable Length	10 FT
  Spool Gun Compatible (Duty)	Light
  UI type	Meters
  Wire Feeders Processes	MIG Flux Cored
  Contact Tips Included	Yes
  Sample MIG Wire Included	Yes
  Input Voltage	120/230
  Input Current	120V: 15A, 230V: 15A
  Input Hertz	60
  Input Power	120/230/1/60
  Input Phase	1
  Mode Icon	CV
  Output Range	120V: 20-140A DC 230V: 20-211A DC Max. OCV : 76V
  Polarity	DC
  Rated Output	120V: 95A/18.8/60% 230V: 175A/22.8V/30%
  Typical Application	Construction Automotive General Fabrication Maintenance & Repair Repair Welding
  Warranty	3 Years

  SHIPPING DIMENSIONS
  Height:	15.50 Inches
  Width:	10.75 Inches
  Length:	22.00 Inches
  Weight:	41 Lb(s) 0 Oz
