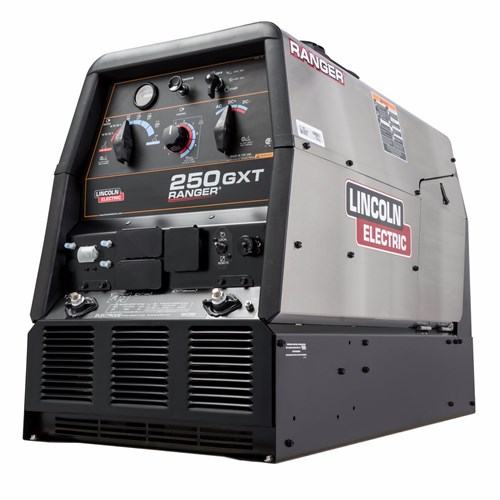

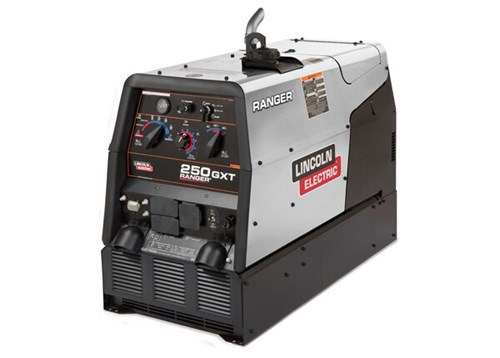

Lincoln Electric Ranger® 250 GXT Stainless Steel Case (Kohler®) w/Electric Fuel Pump

Product Description

Lincoln Ranger® 250 GXT Stainless Steel Case (Kohler®) w/Electric Fuel Pump, Multi-Process #K2382-5

The Lincoln Electric Ranger 250 GXT is the ultimate welding and power solution for all your construction and maintenance needs. This welding machine puts out 250 amps for AC or DC stick and DC wire welding with up to 11,000 watts peak for your other high-amperage equipment and power generator needs.

It has a low noise output with a fully enclosed case that offers extra protection for the engine and your ears with a noise operation level of 76.4 dBA. at 23 ft. The featured and versatile AC/DC welding capabilities, optional TIG module, and remote-ready features make this machine suitable for a wide variety of stick electrode types.

It can tackle a variety of welding processes including; MIG, TIG, Stick, and Flux-Cored. Overall, this machine is a reliable and powerful welding machine that is capable of handling a wide range of welding processes.

Features of the Ranger 250 GTX

• Totally Enclosed Case – Engine is fully protected.
• 3 service access doors.
• Low Noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
• Choose from painted, camo wrapped, or stainless steel roof, case sides and engine doors.

Versatile AC/DC WeldingAC/DC welding output for a broad range of stick electrode types.

• Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding.
• MIG and Flux-Cored capable (with optional equipment).
• Remote ready! 6-pin connector and local/remote switch for remote control operation.

11,000 Watts Peak Single-Phase AC Generator Power

• Peak for motor starting.
• 10,000 watts continuous power for generator, plasma cutter or inverter welder.
• Lights, grinder, power tools.

23 HP Kohler® Gasoline Engine

• 2 cylinder, 4 cycle overhead valve air-cooled design.
• Electric fuel pump avoids vapor lock.
• Oil drain extension for easy oil changes.
• 12 gallon tank for extended run times.
• Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling.
• Rugged ReliabilityWelding and AC Generator Outputs Rated at 104°F (40°C).

• Lincoln Ranger® 250 GXT #K2382-5 Specifications
  Engine	Gasoline Kohler® OHV Command CH730 23 HP 2 Cylinder Air-Cooled
  Single phase auxiliary output	10,000 Watts Continuous, 120/240V, 60Hz
  Fuel tank size	12 gal (45.4 L)
  Welding processes	Stick (SMAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
  Typical applications	Construction Construction & Field Erection General Fabrication Heavy Fabrication Maintenance & Repair Structural Fabrication Structural Welding

  SHIPPING DIMENSIONS
  Height:	30.00 Inches
  Width:	21.50 Inches
  Length:	42.30 Inches
  Weight:	602 Lb(s) 0 Oz
