Lincoln Electric Ranger® Air 260MPX™ Multi-Function Engine Driven Welder/Generator

Product Description

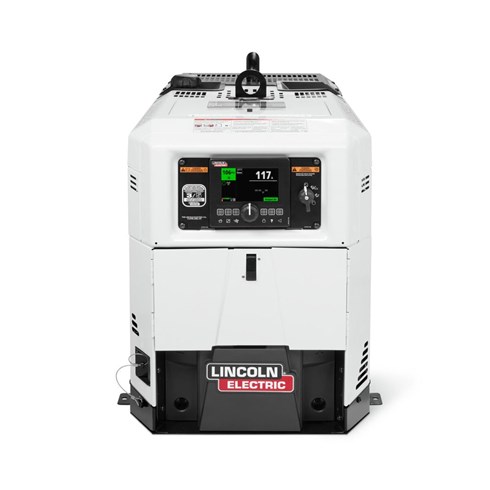

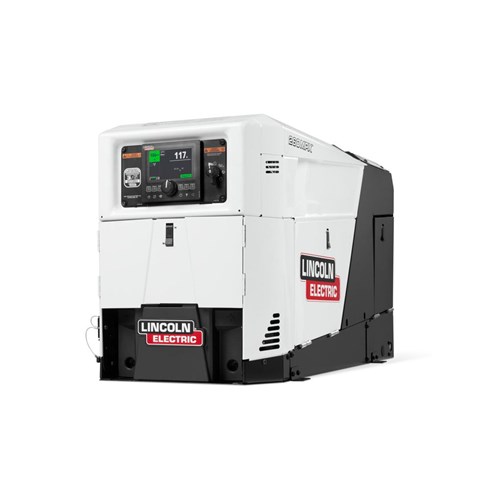

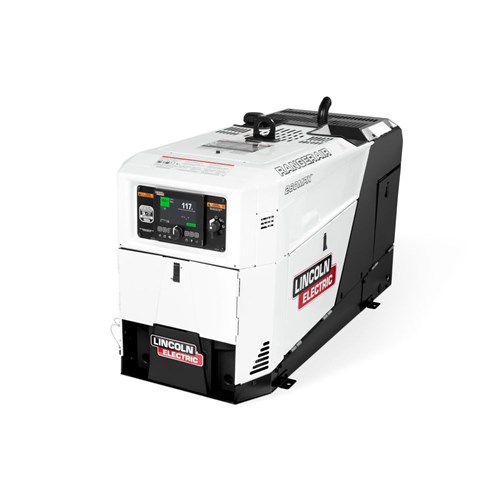

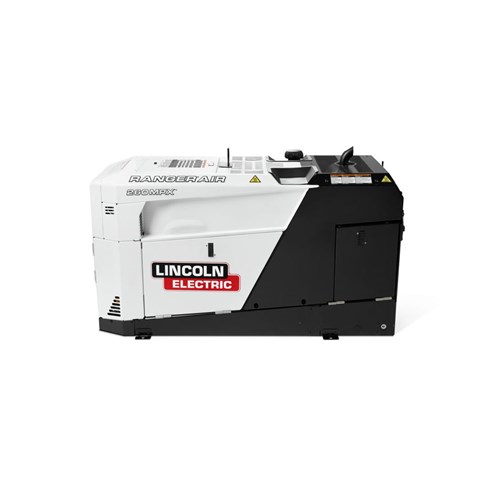

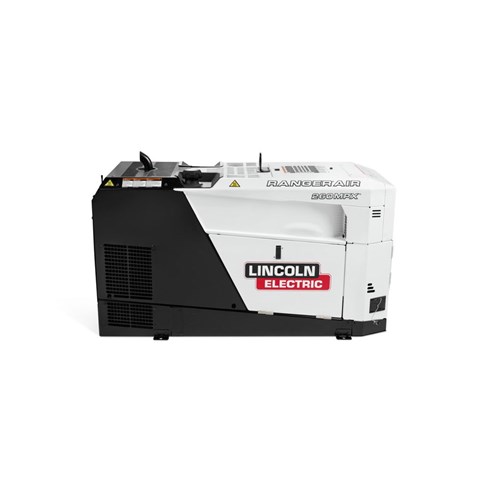

Lincoln Ranger® Air 260MPX™ Multi-Function Engine Drive Machine, 5-in-1 #K5238-1

The Ranger® Air 260MPX™ engine-driven welder/generator from Lincoln Electric is the height of high-powered convenience, offering five key functionalities in one compact unit. Use the machine as an air compressor (40 CFM @ 150 psi), generator (9,000 W continuous, 11,500 W peak), battery jump assist (260A), battery charger (25A/50A) or multi-process welder (Stick, TIG, MIG, Flux-Cored Self/Gas-Shielded). Features like auto stop/start, variable engine speed and a wireless remote make this the ultimate multi-function machine for your welding setup.

Backed by Lincoln Electric 3-year warranty (engine warranted separately by manufacturer).

What’s Included

• (1) Ranger Air 260 MPX Engine Drive Welder

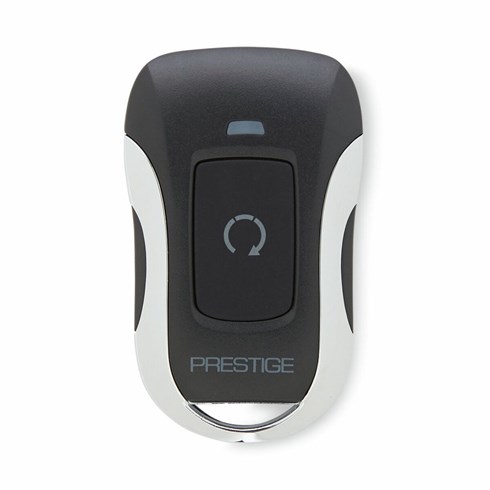

• (1) Basic Wireless Remote for Engine Stop/Start Functionality

Highlights

• Multi-Function Capabilities: Handle various projects with ease.
• Compact Design: Saves space and increases payload for tools.

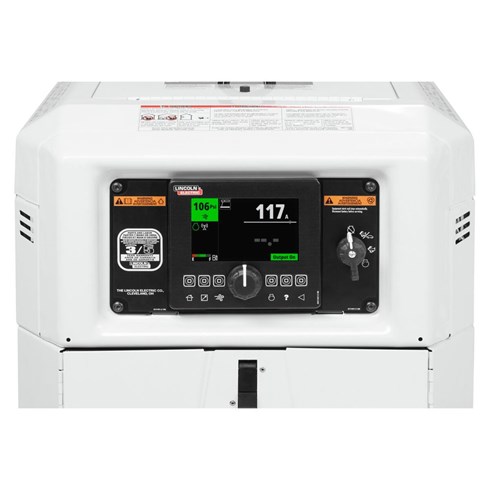

• Digital Interface: Speeds up setup with an easy-to-use display.
• Advanced Welding Tech: Ready. Set. Weld.® and Chopper Technology®.
• Maintenance Alerts: Prevent costly repairs with timely notifications.
• Fuel Efficiency: Auto stop/start and variable speed reduce costs.

Industries

• Construction
• Maintenance & Repair
• Service Truck

Benefits of the Ranger® Air 260MPX™

• Five-in-one capabilities allow use as an air compressor, generator, battery jump assist, battery charger or multiprocess welder.
• Stick, TIG, MIG, Flux-Cored Self-Shielded and Flux-Cored Gas-Shielded processes.
• 11-gallon fuel tank and 2-cylinder Kohler engine with fuel consumption of 1.6 gph at full load.

• Specifications – Lincoln Electric Ranger® Air 260MPX™ Multi-Function Engine Driven Welder/Generator #K5238-1
  Machines Processes	Stick (SMAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
  IEC Rating	231A/29.2V/100% @ 104°F (40 °C)
  Max Rating	260A / 26V / 100% @ 104°F (40°C)
  Output Range by Mode	CC-Stick: 35 –260 Amps, Touch Start TIG: 25 – 260 Amps, CV-Wire: 16 – 27 Volts
  Data Technologies	J1939 CAN
  Machines Communication Technology	CrossLinc
  Auxiliary Output Frequency	60 Hz

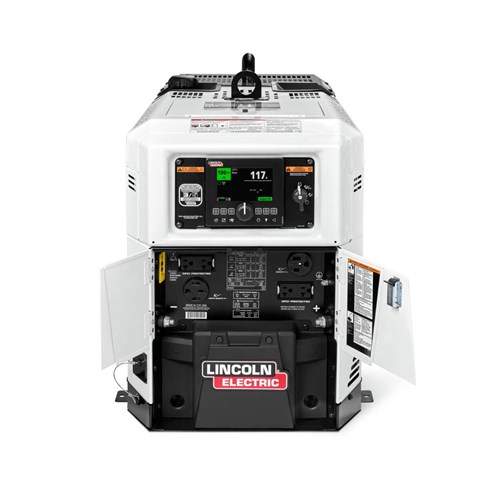

  Receptacle Types	NEMA 5-20R NEMA 6-50R NEMA 14-50R

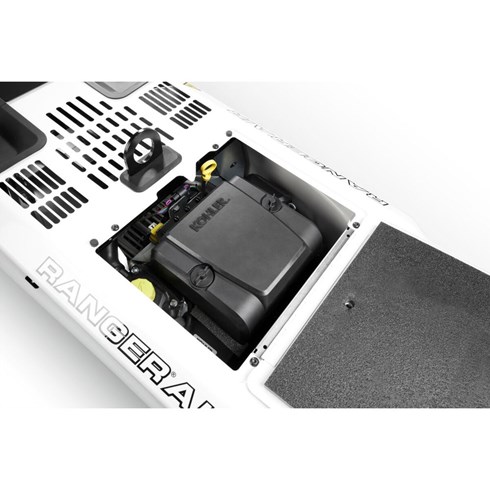

  Engine Brand & Model	Kohler Electronic Throttle Body ECH749
  Engine Description	2 Cylinder Air-Cooled Gasoline Engine
  Engine Horsepower	26.5 HP
  Fuel Tank Size (US gal.)	11
  Fuel Tank Size (L)	41.6
  Oil Capacity (qts.)	1.9
  Oil Capacity (L)	1.8
  Air Compressor Brand/Model	Vanair
  Air Compressor Description	Rotary Screw
  Air Compressor Output	40 CFM @ 150psi
  Air Compressor Max System Pressure	225 psi
  Air Compressor Protections	Safety Relief Valve High Temp Shutdown
  Typical Application	Construction Construction & Field Erection General Fabrication Maintenance & Repair Repair Welding Structural Fabrication Structural Welding
  Warranty	3 Years Parts and Labor – Engine warranted separately by engine manufacturer

  SHIPPING DIMENSIONS
  Height:	32.00 Inches
  Width:	27.00 Inches
  Length:	51.00 Inches
  Weight:	600 Lb(s) 0 Oz
