Lincoln Electric Vantage® 322 Engine-Driven Welder (Kubota®)

Name: Lincoln Electric Vantage® 322 Engine-Driven Welder (Kubota®)
SKU: K2409-5
Availability: InStock

0 customer reviews

Sold: 0

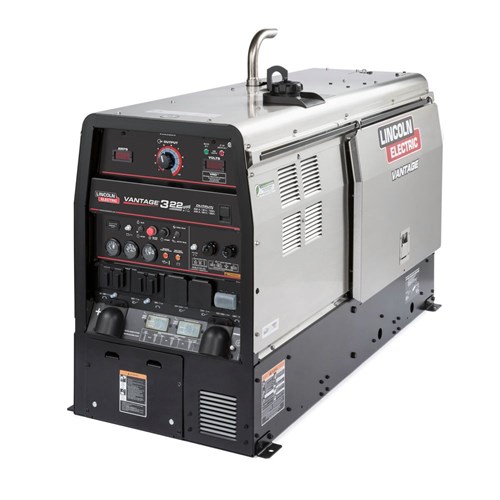

Lincoln Electric Vantage® 322 Engine-Driven Welder (Kubota®)

View details

Current price is: $22,938.44. Original price was: $25,431.00.

10% off

SKU: K2409-5 Categories: Engine-Driven Welder Welder

Product Description

Lincoln Electric Vantage® 322 Diesel Engine-Driven Welder/Generator with Kubota® Engine #K2409-5

The Lincoln Electric Vantage® 322 is a high-performance, all-around welder/generator built to handle demanding industrial applications.

Capable of delivering up to 400 amps of DC multi-process welding, this versatile machine also provides 120/240 VAC single-phase and 240 VAC three-phase auxiliary power.

Designed with a powerful 22 HP Kubota® V1505 diesel engine, the Vantage® 322 offers both strength and reliability on the job site, making it ideal for heavy-duty projects.

Highlights

Up to 400 amps of DC multi-process welding
120/240 VAC single-phase and 240 VAC three-phase auxiliary power
22 hp Kubota® V1505 diesel engine for rugged durability
Patented Chopper Technology® for smooth arc performance

Industries

Construction
Shipbuilding
Pipe Welding
Heavy Equipment Repair

What’s Included

Vantage® 322 (Kubota®) Welder/Generator #K2409-5

Benefits of the Vantage® 322 (Kubota®) EDW

Multi-process flexibility supporting stick, TIG, MIG, flux-cored and gouging
Superior power generation for tools, lights and other welding equipment
Compact and rugged for tough working environments

Product Weights & Dimensions

Dimensions (H x W x D)	35.9 in x 25.3 in x 60 in (913 mm x 642 mm x 1524 mm)
Net Weight	1035 lbs (469 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	300A / 32V / 100% @ 104°F (40°C)
Max Rating	400A / 23V / 100% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 30 – 400 Amps Downhill Pipe (CC): 40 – 300 Amps Touch Start TIG: 20 – 250 Amps CV-Wire: 14 – 32 Volts Arc Gouging: 90 – 300 Amps
Open Circuit Voltage	73 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter	5/16″ (8.0 mm)

Engine Driven Welders

Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	11,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Kubota® V1505
Engine Description	4 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	22.0 hp (16.4 kW)
Engine Block Size & Displacement	91 cu. in. (1.5 L) Bore x Stroke – 3.1 in x 3.1 in (78 mm x 78 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1350
Fuel Tank Size (US gal.)	20 US gal.
Fuel Tank Size (L)	75.7 L
Oil Capacity (qts.)	6.4 qts.
Oil Capacity (L)	6.0 L
Coolant Capacity (US gal.)	1.8 US gal.
Coolant Capacity (L)	6.8 L

Application

Typical Application

Construction
Mining
Railroad Maintenance
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
