Lincoln Electric Vantage® 322 (Kubota®) Engine-Driven Welder Ready-Pak® 1

Name: Lincoln Electric Vantage® 322 (Kubota®) Engine-Driven Welder Ready-Pak® 1
SKU: K2409-5-RP1
Availability: InStock

0 customer reviews

Sold: 0

Lincoln Electric Vantage® 322 (Kubota®) Engine-Driven Welder Ready-Pak® 1

View details

Current price is: $29,623.18. Original price was: $32,842.00.

10% off

SKU: K2409-5-RP1 Categories: Engine-Driven Welder Welder

Product Description

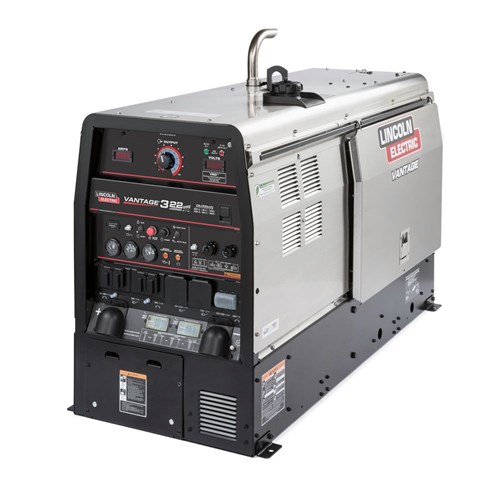

Lincoln Electric Vantage® 322 Diesel Engine-Driven Welder/Generator with Kubota® Engine Ready-Pak 1 #K2409-5-RP1

The Lincoln Electric Vantage® 322 (Kubota®) Ready-Pak® 1 is an all-around welder/generator designed for demanding multi-process welding applications.

With up to 400 amps of DC welding power, this unit is powered by a robust 22 hp Kubota® V1505 diesel engine and integrates patented Chopper Technology® for smooth, high-quality welds.

The Ready-Pak® 1 package includes all necessary accessories, including a trailer with a fender and light kit, cable rack, and welding cables, ensuring rapid deployment for any job site.

Highlights

400 amps of DC multi-process welding capability
Powered by a 22 hp Kubota® V1505 diesel engine
Patented Chopper Technology®for consistent arc performance
Preassembled package with trailer, fender kit and accessories for easy transport
120/240 VAC single-phrase and 240 VAC three-phase auxiliary power

Industries

Construction
Maintenance and Repair
Shipbuilding
Fabrication
Pipeline Welding

What’s Included

Vantage® 322 (Kubota®) Ready-Pak® 1
Weld Cable – Tweco® Male & Open End (2/0, 350A, 60%) – 10 ft (3 m) | K2483-2
EH-305HD Electrode Holder – 300A, 60% Duty Cycle | K909-7
Cable Rack for Welder Trailers | K2640-1
Fender and Light Kit for Welder Trailers | K2639-1
Medium Two-Wheel Welder Trailer | K2636-1
Weld Cable – Tweco® Male & Female (2/0, 350A, 60%) – 50 ft (15.3 m) | K2485-2
Insulated CT40FS Female Connector | K2487-1
Weld Cable – Tweco® Male & 0.53 Lug (2/0, 350A, 60%) – 50 ft (15.3 m) | K2484-2
GC-300 Work Clamp – 300A, 60% Duty Cycle | K910-1
Vantage® 322 (Kubota®) | K2409-5

Benefits of the Vantage® 322 (Kubota®) Ready-Pak® 1

All-in-one package with everything preassembled for quick setup and mobility
High-output welding and auxiliary power for versatile job site applications
Trailer with an integrated fender and light kit allows for safe, convenient transport
Kubota® diesel engine provides long-lasting, fuel-efficient performance
Chopper Technology® ensures smoother, more consistent welds across processes

Product Weights & Dimensions

Dimensions (H x W x D)	53.9 in x 57 in x 111 in (1370 mm x 1448 mm x 2820 mm)
Net Weight	1517 lbs (688 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	300A / 32V / 100% @ 104°F (40°C)
Max Rating	400A / 23V / 100% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 30 – 400 Amps Downhill Pipe (CC): 40 – 300 Amps Touch Start TIG: 20 – 250 Amps CV-Wire: 14 – 32 Volts Arc Gouging: 90 – 300 Amps
Open Circuit Voltage	73 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter	5/16″ (8.0 mm)

Engine Driven Welders

Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	11,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Kubota® V1505
Engine Description	4 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	22.0 hp (16.4 kW)
Engine Block Size & Displacement	91 cu. in. (1.5 L) Bore x Stroke – 3.1 in x 3.1 in (78 mm x 78 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1350
Fuel Tank Size (US gal.)	20 US gal.
Fuel Tank Size (L)	75.7 L
Oil Capacity (qts.)	6.4 qts.
Oil Capacity (L)	6.0 L
Coolant Capacity (US gal.)	1.8 US gal.
Coolant Capacity (L)	6.8 L

Application

Typical Application

Construction
Mining
Railroad Maintenance
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
