Lincoln Electric Vantage® 441X (Perkins®) Ready-Pak® 1

Name: Lincoln Electric Vantage® 441X (Perkins®) Ready-Pak® 1
SKU: K4535-1-RP1
Availability: InStock

0 customer reviews

Sold: 0

Lincoln Electric Vantage® 441X (Perkins®) Ready-Pak® 1

View details

Current price is: $43,459.04. Original price was: $48,181.00.

10% off

SKU: K4535-1-RP1 Categories: Engine-Driven Welder Welder

Product Description

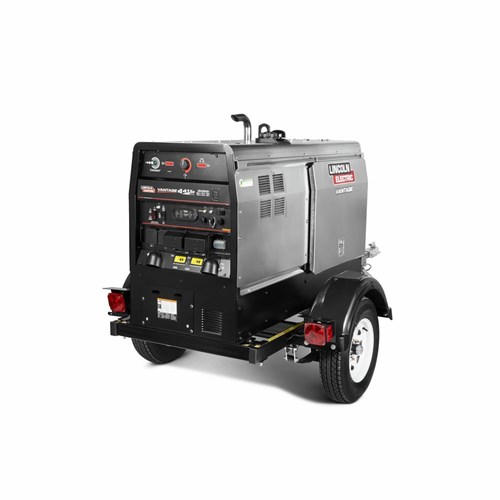

Lincoln Vantage® 441X Ready-Pak® 1 Welding System with Perkins® Engine #K4535-1-RP1

The Lincoln Electric Vantage® 441X Ready-Pak® 1 #K4535-1-RP1 is a robust, all-purpose welder/generator designed for the toughest environments.

Delivering up to 520 amps of DC multi-process welding, it is equipped with a 41.0 hp Perkins® 404F-E22T diesel engine for high efficiency and performance. With Chopper Technology® and CrossLinc® Technology, this machine ensures precise welding output and remote operation capabilities.

The Ready-Pak® 1 configuration includes a preassembled package with a welder, trailer, fender and light kit, cable rack, welding cables, ground clamps, and an electrode holder, ready for immediate use on demanding job sites.

Highlights

520 amps of DC multi-process welding
Powered by a 41.0 hp Perkins® 404F-E22T diesel engine
Integrated Chopper Technology® for stable arc performance
CrossLinc® Technology for remote control capabilities
120/240 VAC single-phase and 240 VAC three-phase auxiliary power
Rugged and reliable for demanding environments

Industries

What’s Included

Lincoln Electric Vantage® 441X welder/generator
Trailer with fender and light kit
Cable rack
Welding cables
Ground clamps
Electrode holder
Preassembled, ready-to-use package

Benefits of the Lincoln Electric Vantage® 441X (Perkins®) Ready-Pak® 1

High output with up to 520 amps of DC multi-process welding capability
Perkins® diesel engine ensures fuel efficiency and durability
Multi-process welding supports stick, MIG, TIG, Flux-Cored and Submerged Arc welding
Chopper Technology® ensures smooth, consistent arc performance
CrossLinc® Technology allows remote operation without control cables
Ready-Pak® 1 includes all necessary components for immediate deployment

Product Weights & Dimensions

Dimensions (H x W x D)	39.1 in x 28.4 in x 65.1 in (994 mm x 721 mm x 1654 mm)
Net Weight	1998 lbs (906 kg)

Machines

Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Pulsed MIG (GMAW-P) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	400A / 36V / 100% @ 104°F (40°C)
Max Rating	520A / 30V / 60% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 30 – 525 A Downhill Pipe (CC): 40 –350 A Touch Start TIG: 20 – 350 A CV-Wire: 10 – 45 V Arc Gouging: 60 – 525 A
Open Circuit Voltage	70 Peak OCV @ 1800 RPM
Rated Gouging Carbon Diameter	3/8″ (9.5 mm)
Machines Communication Technology	CrossLinc ArcLink

Engine Driven Welders

Single Phase Auxiliary Output	11,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	17,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R NEMA 15-50R
Engine Brand & Model	Perkins® 404F-E22T
Engine Description	4 Cylinder Turbocharged Water Cooled Diesel Engine
Engine Horsepower	41.0 hp (30.6 kW)
Engine Block Size & Displacement	134 cu. in. (2.2 L), Bore x Stroke – 3.30 in x 3.90 in (84 mm x 100 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1500
Fuel Tank Size (US gal.)	20 US gal.
Fuel Tank Size (L)	75.7 L
Oil Capacity (qts.)	10.0 qts.
Oil Capacity (L)	9.5 L
Coolant Capacity (US gal.)	2.55 US gal.
Coolant Capacity (L)	9.7 L

Application

Typical Application

Construction
Mining
Railroad Maintenance
Construction & Field Erection
Maintenance & Repair
Offshore
Oil & Gas
Power Generation
Shipbuilding
Structural Fabrication
Structural Welding
