Miller 20 Series Digital, Q4015, Four Drive Roll Wire Feeder Kit

Miller 20 Series Digital, Q4015, Four Drive Roll Wire Feeder Kit

Current price is: $3,358.00. Original price was: $3,878.00.

13% off
SKU: 951780001 Categories:

Product Description

Miller 20 Series Digital, Q4015, Drive Roll Kit #951780001

What’s included

  • 20 Series Digital Feeder
  • BTB 400A Gun
  • AccuLock contact tips, .035 (QTY 3), .045 (QTY 2)
  • .035-.045 reversible dual V drive rolls

Industrial Design – Ideal for most high-duty-cycle applications requiring day-in/day-out trouble-free operation.

Motor Ramp and Burnback Control – Provides excellent wire starting and stopping performance.

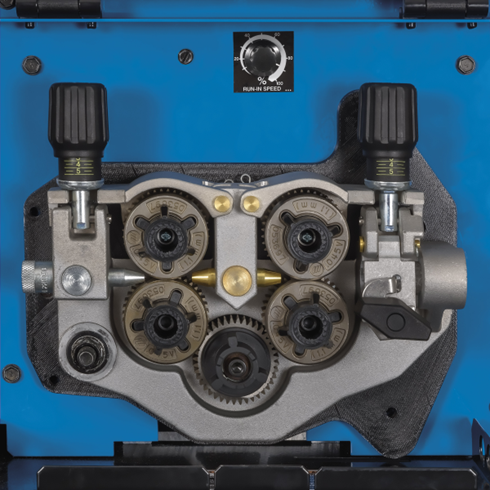

Four Gear-Driven Drive Rolls – Provide smooth, positive wire feeding for most wires.

Trigger Hold – Allows the operator to make long welds without having to hold the trigger continuously – reducing operator fatigue.

Quick-Change Drive Rolls – Save time with standard, quick-change drive rolls.

Standard 14 pin connection – Each feeder includes a 15-foot Bernard Q400 MIG gun, plus a 10-foot 14-pin interconnecting cord.

AccuLock S Consumables – AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!

Specifications – 20 Series Digital, Q4015, Drive Roll Kit #951780001

Welding Processes MIG (GMAW)
Flux Cored (FCAW)
Industries Interests Manufacturing
Railcar
Applications Fabrication
Welding Education and Training
Input Power 24 VAC, 3.5 A, 50/60 Hz
Wire Feed Speed 75–750 ipm (1.9–19 m/min.)
Wire Diameter Capacity .023–5/64 in. (0.6–2.0 mm)

SHIPPING DIMENSIONS

Height: 16.00 Inches
Width: 12.38 Inches
Length: 27.88 Inches
Weight: 46 Lb(s) 0 Oz
