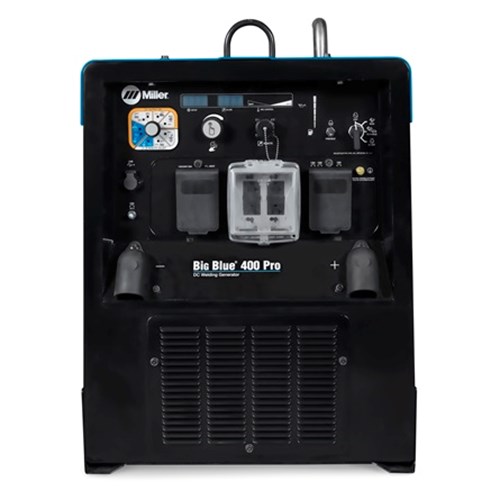

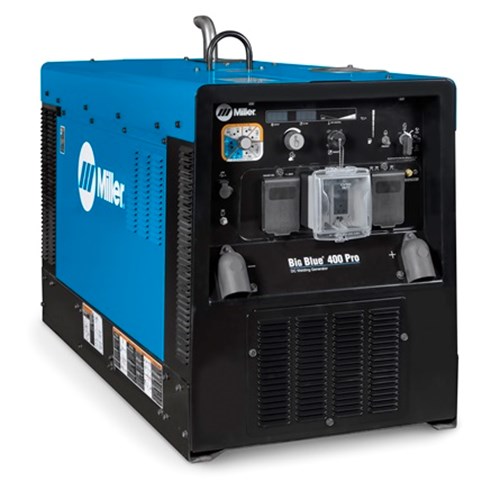

Miller Big Blue® 400 Pro (CAT)

Product Description

Miller Big Blue® 400 Pro (CAT) #907774

Designed with the professional in mind, the Big Blue 400 Pro is the best for ease of use, reliability, and fuel economy.

Features:

NEW Heavy-Duty Low-Speed CAT Industrial Diesel Engine

• With the reliability you expect from Miller, the CAT C1.5T turbocharged three-cylinder, liquid-cooled, industrial diesel engine is backed by world-class support and service through the global CAT dealer network

Dynamic DIG™

• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short
• What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique

Industrial USB Port

• Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics

Superior Arc Performance

Four preset DIG settings:

• (Stick) Hot Start™
• (Stick) Lift-Arc™
• TIG with Auto-Stop™
• Crater-out MIG/FCAW arc performance

Quiet Operation

• Improves work site safety and communication

Simple-to-Set Controls

• Requires no elaborate procedure – just select process and weld!

Auto Remote Sense™ (ARS)

• Detects if remote control is plugged into the 14-pin receptacle and eliminates the confusion of a remote/panel switch

Thermal Overload Protection

• Prevents machine damage if the duty cycle is exceeded or airflow is blocked

Meter Maintenance Displays

• Fuel gauge
• Hour meter function
• Oil change interval
• High coolant temperature and low oil pressure shutdowns
• Low fuel shutdown – engine shuts down before system runs out of fuel, making restarts easy.

Other Standard Features

• Digital preset weld meters, output contactor control, and automatic idle

• Miller Big Blue® 400 Pro (CAT) Specifications
  Industries Interests	Construction Cross Country Pipeline Fabrication Pipe Fabrication / Construction Mechanical Contracting Mechanical Contracting
  Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Stick (SMAW) TIG DC (GTAW-DC)
  Engine Brand	CAT
  Portability	Lift Eye (Standard) Trailer (Optional)
  Warranty	3 Years Miller’s True Blue Warranty



  SHIPPING DIMENSIONS
  Height:	32.00 Inches
  Width:	26.50 Inches
  Length:	56.00 Inches
  Weight:	1010 Lb(s) 0 Oz

  • Miller Big Blue 400 Pro (CAT) Spec Sheet
