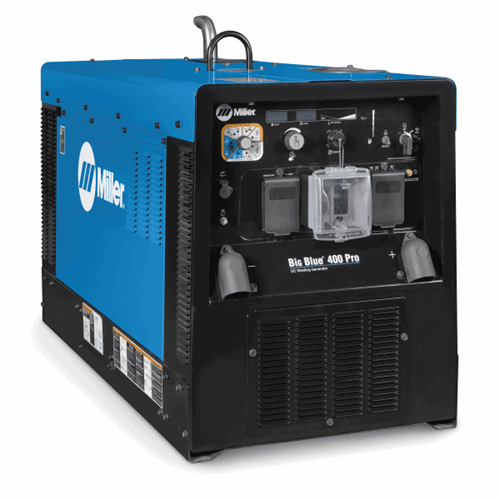

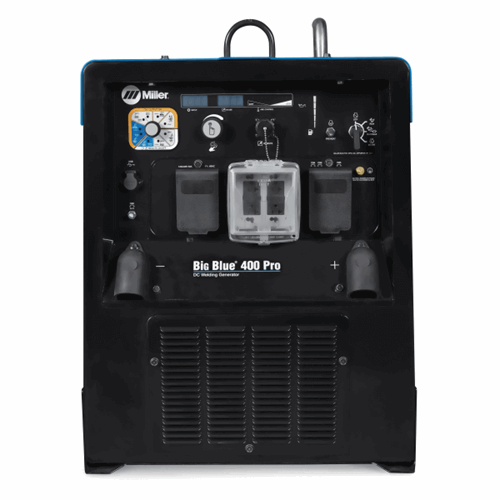

Miller Big Blue® 400 Pro (Mitsubishi)
Miller Big Blue® 400 Pro (Mitsubishi)
$24,746.00Current price is: $24,746.00. Original price was: $28,580.00.
13% offProduct Description
Miller Big Blue® 400 Pro (Mitsubishi) 907733
Designed for ease of use, reliability, and fuel economy. The Miller Big Blue 400 Pro is designed by professional welders for professional welders.
Features:
Heavy-Duty Low-Speed Mitsubishi S4L2 Industrial Diesel Engine – The Mitsubishi S4L2 is designed to run for 10,000 hours before any major necessary overhaul. Backed by world-class support and service.
Quiet Operation – Improves communication around the worksite and improves safety.

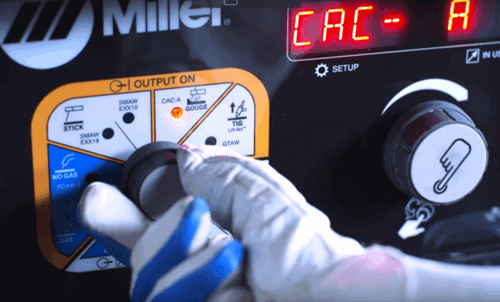

Digital Meters with SunVision™ – Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters can be seen clearly even in direct sunlight.
Industrial USB Port – Conveniently upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
Auto Remote Sense™ (ARS) – Detects if a remote control is plugged into the 14-pin receptacle and eliminates the confusion of a remote/panel switch.
Simple-to-Set Controls – Requires no elaborate procedure – just select process and weld!
Big Blue® 400 Pro Processes:
- Air Carbon Arc Cutting and Gouging (CAC-A)
- Flux Cored (FCAW)
- MIG (GMAW)
- Stick (SMAW)
- TIG DC (GTAW-DC)
Miller Big Blue 400 Pro (Mitsubishi) Specifications: |
|
|---|---|
| Industries Interests | Construction Infrastructure Fabrication Maintenance and Repair – Field Operations Mechanical Contracting Pipe Fabrication / Construction Work / Service Trucks |
| Carbon Diameter | 1/4 in (6.4 mm) |
| Cold Weather Starting Aids | Engine Block Heater Glow Plugs |
| Current Type | DC |
| Engine Brand | Mistubishi |
| Engine Compliance | T4F |
| Engine Idle Speed | 1500 RPM |
| Portability | Lift Eye (Standard) Trailer (Optional) |
| Engine Weld Speed | 1800 RPM |
| Fuel Tank Size | 11.5 Gallon |
| Net Height | 32 in |
| Fuel Type | Diesel |
| Net Length | 56 in |
| Horsepower | 34.824.7 hp |
| Max Open Circuit Voltage | 85 VDC |
| Net Weight | 993 lbs |
| Weldable Metals | Steel Stainless Steel |
| Net Width | 26.25 in |
| Rated Output | 400 A at 24 V, 100% Duty Cycle 350 A at 27 V, 100% Duty Cycle 300 A at 32 V, !00% Duty Cycle |
| Single Phase Generator Continuous Power | 10000 W |
| Warranty | Engine Warranties Miller’s True Blue Warranty |
| Single Phase Generator Peak Power | 12000 W |
| Sound Rating | Idle: 68.7 dB / Weld: 72.1 dB |
| Amperage Range | 20 – 400 |
SHIPPING DIMENSIONS |
|
| Height: | 34.00 Inches |
| Width: | 28.25 Inches |
| Length: | 58.00 Inches |
| Weight: | 1045 Lb(s) 0 Oz |
