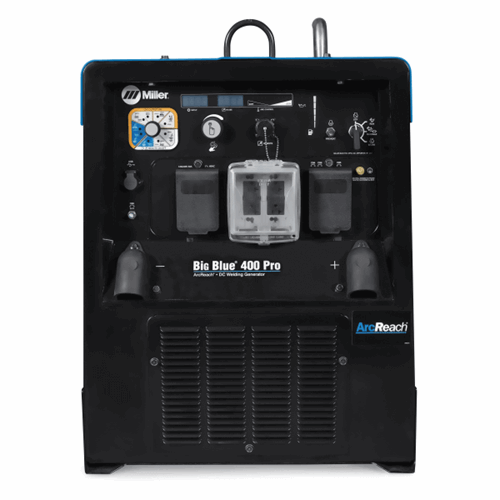

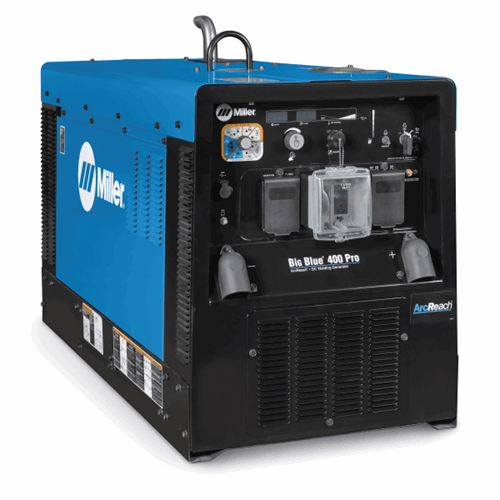

Miller Big Blue® 400 Pro (Mitsubishi) ArcReach®

Product Description

Miller Big Blue® 400 Pro (Mitsubishi) ArcReach® 907733001

The Big Blue 400 Pro is designed for ease of use, reliability, and fuel economy. Designed for professional welders by professional welders.

Processes

• Air Carbon Arc Cutting and Gouging (CAC-A)
• Flux Cored (FCAW)
• MIG (GMAW)
• Pulsed MIG (GMAW-P)
• RMD
• Stick (SMAW)
• TIG DC (GTAW-DC)

• Miller Big Blue 400 Pro (Mitsubishi) ArcReach Specifications:
  Industries Interests	Construction Infrastructure Fabrication Maintenance and Repair – Field Operations Mechanical Contracting Pipe Fabrication / Construction Work / Service Trucks
  Carbon Diameter	1/4 in (6.4 mm)
  Cold Weather Starting Aids	Engine Block Heater Glow Plugs
  Current Type	DC
  Engine Brand	Mitsubishi
  Engine Compliance	T4F
  Engine Idle Speed	1500 RPM
  Portability	Lift Eye (Standard) Trailer (Optional)
  Engine Weld Speed	1800 RPM
  Fuel Tank Size	11.5 Gallon
  Net Height	32 in
  Fuel Type	Diesel
  Net Length	56 in
  Horsepower	24.7 hp
  Max Open Circuit Voltage	85 VDC
  Net Weight	993 lbs
  Weldable Metals	Steel Stainless Steel
  Net Width	26.25 in
  Rated Output	400 A at 24 V, 100% Duty Cycle 350 A at 27 V, !00% Duty Cycle 300 A at 32 V, !00% Duty Cycle
  Single Phase Generator Continuous Power	10000 W
  Warranty	3 Years Engine Warranties Miller’s True Blue Warranty
  Single Phase Generator Peak Power	12000 W
  Sound Rating	Idle: 68.7 dB / Weld: 72.1 dB
  Amperage Range	20 – 400



  SHIPPING DIMENSIONS
  Height:	34.00 Inches
  Width:	28.25 Inches
  Length:	58.00 Inches
  Weight:	1045 Lb(s) 0 Oz

  • Miller Big Blue® 400 Pro (Mitsubishi) ArcReach® 907733001 Spec Sheet
