Miller Big Blue® 600 Air Pak

Product Description

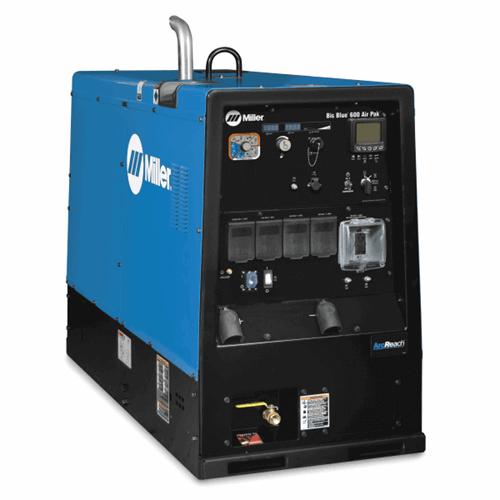

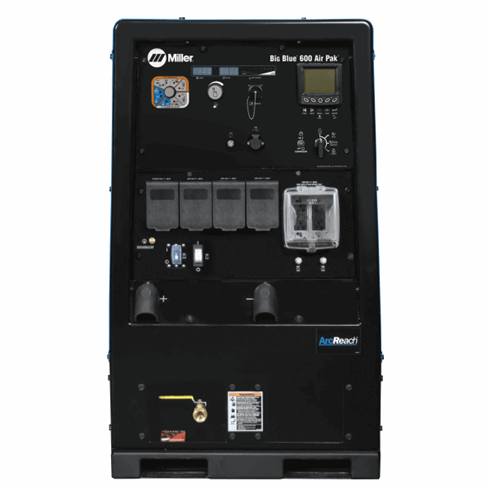

Miller Big Blue® 600 Air Pak Welder/Generator with ArcReach #907750

This all-in-one field-based welder/generator from Miller® eliminates the need for an auxiliary air compressor. With single-operator power for welding and carbon arc gouging, it’s ideal for critical repairs and maintenance work. The generator produces 27,000 peak watts of power when using 3-Phase power or 15,000 watts on single-phase, and the built-in Ingersoll Rand screw-type air compressor is perfect for gouging and running pneumatic tools.

The Big Blue 600 will keep your crew productive with reliable welding equipment and time-saving innovations like ArcReach, which makes it possible to make parameter adjustments right where they’re welding instead of having to walk back to the machine. And with the cleanest, greenest diesel power available, the T4F-compliant Deutz industrial diesel engine will have everyone breathing a little easier.

Experience the power of True Blue® for yourself, and you’ll understand why so many pros choose Miller.

Heavy Industrial Applications:

• Maintenance and Repair Rigs
• Heavy Construction
• Mining Maintenance
• Railroad Maintenance
• Pipe Welding

Processes:

• Stick (SMAW)
• MIG (GMAW)
• Flux-Cored (FCAW)
• RMD®*
• Pulsed MIG (GMAW-P)*
• DC TIG (GTAW)
• Submerged Arc (SAW)
• Air Carbon Arc (CAC-A)
  3/8-inch (9.5 mm) Carbons

Features and Benefits of Miller Big Blue® 600 Air Pak 907750:

• Digital Meters with SunVision™ allows you to weld with the easiest view possible in all light environments.
• Ingersoll Rand Ultra-Reliable Industrial Rotary Screw Compressor (Air Pak Models Only) allows greater fuel savings and longer compressor service intervals.
• Industrial USB Port uploads the latest software while logging files and stats of machine use for operation management.
• 20,000 watts of Pure Generator Power is a second welding arc now available with an extra inverter-based power source.
• HD Powder Coat protects sheet metal from rust and corrosion.
• Optional Vandalism Lockout (Standard on Deluxe Model) is a lockable hinged steel panel cover and protects the nameplate, gauges, and ignition switch (padlock included).
• Arc Control stick and solid wire welding are made easier with fine-tuning of hard to weld locations.
• Standard 14-pin Receptacle with Auto-Remote Sense™ – Connection of feeders and remote controls has never been made easier.
• ArcReach® Remote Control Technology allows remote control of the power source without a control cord.
• Polarity Reversing Switch efficiently changes welding polarity without having to change over cables.
• Electronic Engine Display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, engine rpm, and air pressure.

ArcReach® Remote Control Technology

• More welds in less time with more arc-on time and reduced exposure to workplace hazards, automatic return to panel settings, auto-Process Select, and less operator fatigue for increased productivity
• Better welds with less rework when the operator can precisely set arc amperage or voltage and remote override of Big Blue 500 Pro
• Save time by having fewer cables to maintain while eliminating costly control cord repairs
• Fleet compatibility can be used with ArcReach-equipped XMT® and Dimension™ power sources.

• Miller Big Blue 600 Air Pak Specifications:
  Industries Interests	Construction Infrastructure Fabrication Maintenance and Repair – Field Operations Work / Service Trucks
  Carbon Diameter	1/2 in (12.7 mm)
  Cold Weather Starting Aids	Engine Block Heater Glow Plugs
  Current Type	DC
  Engine Brand	Deutz
  Engine Compliance	T4F
  Engine Idle Speed	1350 RPM
  Engine Weld Speed	1800 RPM
  Fuel Tank Size	25 Gallon
  Net Height	46 in
  Fuel Type	Diesel
  Net Length	69.5 in
  Horsepower	65.7 hp
  Max Open Circuit Voltage	92 VDC
  Net Weight	2040 lbs
  Weldable Metals	Steel Stainless Steel
  Net Width	28.5 in
  Rated Output	600 A at 44 V, 60% Duty Cycle 550 A at 43 V, 100% Duty Cycle 500 A at 40 V, 100% Duty Cycle
  Single Phase Generator Continuous Power	12000 W
  Warranty	3 Years Engine Warranties Miller’s True Blue Warranty
  Single Phase Generator Peak Power	15000 W
  Sound Rating	Idle: 71.3 dB / Weld: 78.9 dB
  Three Phase Generator Continuous Power	20000 W
  Three Phase Generator Peak Power	27000 W
  Amperage Range	20 – 600
  Portability	Fork Pockets Lift Eye (Standard) Trailer (Optional)



  SHIPPING DIMENSIONS
  Height:	48.00 Inches
  Width:	30.00 Inches
  Length:	71.00 Inches
  Weight:	2090 Lb(s) 0 Oz

  • Miller Big Blue® 600 Air Pak 907750 Spec Sheet
