Miller Big Blue® 600 Air Pak™ Truck Mount Spec
Miller Big Blue® 600 Air Pak™ Truck Mount Spec
$68,041.00Current price is: $68,041.00. Original price was: $78,582.00.
13% offProduct Description

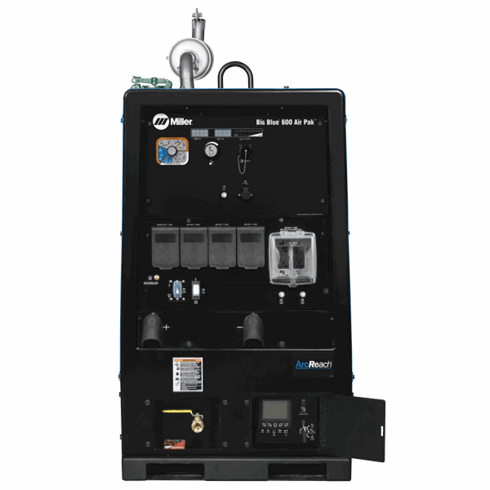

Miller Big Blue® 600 Air Pak™ Truck Mount Spec #907750001
The Big Blue 600 Air Pak Work Truck Mount is designed specifically for field-based applications and single-operator use to perform maintenance and repair work. The critical controls are located within easy reach of a ground-based operator when the machine is mounted on the bed of a large-body truck. The Miller Big Blue® 600 Air Pak™ Truck Mount is among the industry leaders in versatility and reliability. This high-output machine is designed to go wherever your truck can, to perform demanding jobs in rigorous field environments.
What’s Included:
- ArcReach® Remote Control Technology
- FA-1D Lockable Flame Arrestor Fuel Cap
- Spark Arrestor
- Air Cleaner Restriction Indicators
- Vandalism Lockout Kit
Check out the wide selection of MIG, TIG, Stick and Gas welders available at Welders Supply Company.
Miller Big Blue® 600 Air Pak™ Specifications: |
|
|---|---|
| Industries Interests | Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Pulsed MIG (GMAW-P) RMD Stick (SMAW) TIG DC (GTAW-DC) |
| Processes | Construction Infrastructure Maintenance and Repair – Field Operations Work / Service Trucks |
| Carbon Diameter | 1/2 in (12.7 mm) |
| Cold Weather Starting Aids | Engine Block Heater Glow Plugs |
| Current Type | DC |
| Engine Brand | Deutz |
| Engine Compliance | T4F |
| Engine Idle Speed | 1350 RPM |
| Portability | Lift Eye (Standard) Fork Pockets |
| Engine Weld Speed | 1800 RPM |
| Fuel Tank Size | 25 Gallon |
| Net Height | 46 in |
| Fuel Type | Diesel |
| Net Length | 69.5 in |
| Horsepower | 65.7 hp |
| Max Open Circuit Voltage | 92 VDC |
| Net Weight | 2040 lbs |
| Weldable Metals | Steel Stainless Steel |
| Net Width | 28.5 in |
| Rated Output | 600 A at 44 V, 60% Duty Cycle 550 A at 43 V, 100% Duty Cycle 500 A at 40 V, 100% Duty Cycle |
| Single Phase Generator Continuous Power | 12000 W |
| Warranty | Engine Warranties Miller’s True Blue Warranty |
| Single Phase Generator Peak Power | 15000 W |
| Sound Rating | Idle: 71.3 dB / Weld: 78.9 dB |
| Three Phase Generator Continuous Power | 20000 W |
| Three Phase Generator Peak Power | 27000 W |
| Amperage Range | 20 – 600 |
SHIPPING DIMENSIONS |
|
| Height: | 48.00 Inches |
| Width: | 30.00 Inches |
| Length: | 71.00 Inches |
| Weight: | 2090 Lb(s) 0 Oz |
