Miller Big Blue® 600 Pro (Kubota)

Product Description

Miller Big Blue® 600 Pro (Kubota) #907737004

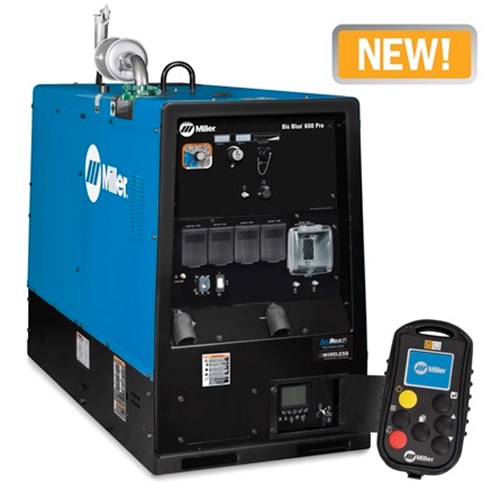

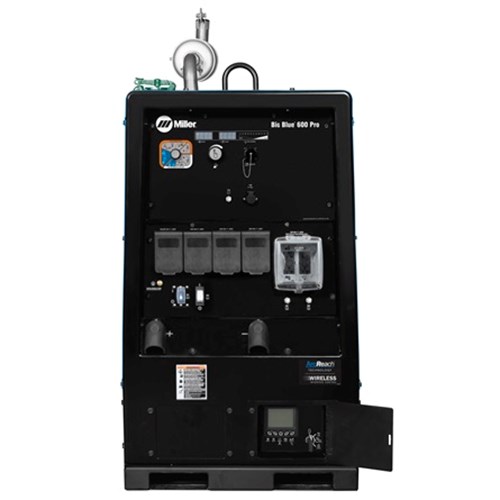

This EPA Tier 4 Final 600 amp welder/generator tackles tough jobs that require high output for welding, gouging, and auxiliary power.

Features:

Heavy-Duty Low-Speed Kubota V2403 Industrial Diesel Engine

The cleanest, greenest diesel power available. Kubota T4F models utilize diesel oxidation catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.

Quiet Operation

Improves work site safety and communication.

Digital Meters with SunVision

Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters can be seen clearly even in direct sunlight.

Electronic Engine Display

Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.

Industrial USB Port

Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.

Dynamic DIG™

Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

Auto Remote Sense™ (ARS)

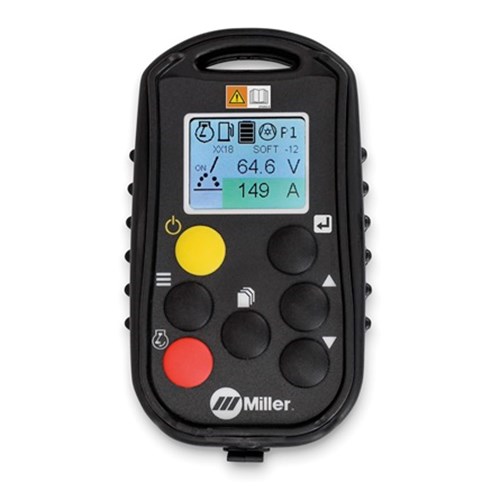

Detects if remote control is plugged into the 14-pin receptacle and eliminates the confusion of a remote/panel switch.

Simple-to-Set Controls

Requires no elaborate procedure – just select process and weld!

HD Powder Coat

All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).

Advanced Features for the Professional Welder

• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion.
• Infinite arc control available in the Stick and Wire modes for easier fine-tuning of tough-to-weld materials and out-of-position applications.
• Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.

Low OCV Stick (VRD)

When activated, reduces the open-circuit voltage to 15 volts when the power source is not in use, increasing operator safety without compromising arc starts.

Other Standard Features

• Output contactor control
• Automatic idle
• Thermal overload protection
• 120-volt engine block heater

• Miller Big Blue® 600 Pro (Kubota) #907737004 Specifications:
  Industries Interests	Construction Mining Maintenance and Repair – Field Operations Pipe Fabrication / Construction
  Cold Weather Starting Aids	Engine Block Heater Glow Plugs
  Engine Brand	Kubota
  Engine Compliance	T4F
  Engine Idle Speed	1350 RPM
  Engine Weld Speed	1800 RPM
  Fuel Tank Size	25 Gallons
  Fuel Type	Diesel
  Horsepower	48.9 hp
  Weldable Metals	Stainless Steel Steel
  Rated Output	600 A at 42 V, 40% Duty Cycle,550 A at 42 V, 60% Duty Cycle,500 A at 40 V, 100% Duty Cycle
  Single Phase Generator Continuous Power	12000 W
  Single Phase Generator Peak Power	15000 W
  Rated Carbon Diameter	3/8 in (9.5 mm)
  Current Type	DC
  Max Open Circuit Voltage	92 VDC
  Amperage Range	Amperage Min Max 20 – 600
  Portability	Fork Pockets Lift Eye (Standard) Trailer (Optional)
  Weld Output	CC / CV
  Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Stick (SMAW) TIG DC (GTAW-DC) Submerged Arc (SAW)
  Warranty	3 Years Miller’s True Blue Warranty

  SHIPPING DIMENSIONS
  Height:	46.00 Inches
  Width:	28.50 Inches
  Length:	69.50 Inches
  Weight:	1750 Lb(s) 0 Oz

  Miller Big Blue® 600 Pro (Kubota) #907737004 Specifications:
  Industries Interests	Construction Mining Maintenance and Repair – Field Operations Pipe Fabrication / Construction
  Cold Weather Starting Aids	Engine Block Heater Glow Plugs
  Engine Brand	Kubota
  Engine Compliance	T4F
  Engine Idle Speed	1350 RPM
  Engine Weld Speed	1800 RPM
  Fuel Tank Size	25 Gallons
  Fuel Type	Diesel
  Horsepower	48.9 hp
  Weldable Metals	Stainless Steel Steel
  Rated Output	600 A at 42 V, 40% Duty Cycle,550 A at 42 V, 60% Duty Cycle,500 A at 40 V, 100% Duty Cycle
  Single Phase Generator Continuous Power	12000 W
  Single Phase Generator Peak Power	15000 W
  Rated Carbon Diameter	3/8 in (9.5 mm)
  Current Type	DC
  Max Open Circuit Voltage	92 VDC
  Amperage Range	Amperage Min Max 20 – 600
  Portability	Fork Pockets Lift Eye (Standard) Trailer (Optional)
  Weld Output	CC / CV
  Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Stick (SMAW) TIG DC (GTAW-DC) Submerged Arc (SAW)
  Warranty	3 Years Miller’s True Blue Warranty

  SHIPPING DIMENSIONS
  Height:	46.00 Inches
  Width:	28.50 Inches
  Length:	69.50 Inches
  Weight:	1750 Lb(s) 0 Oz
