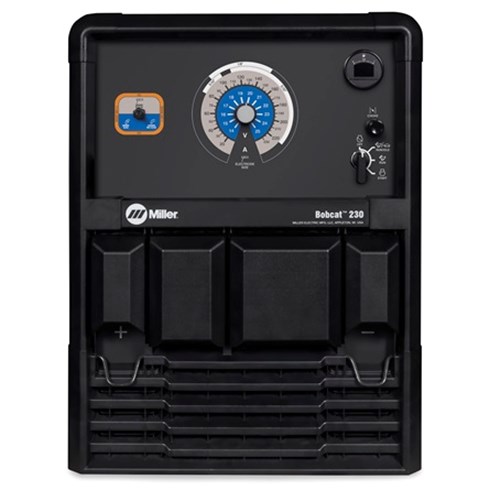

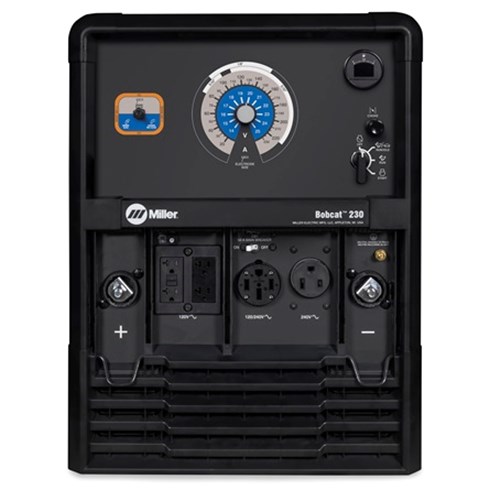

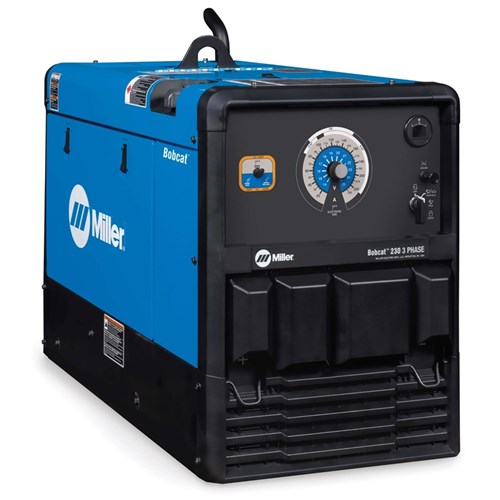

Miller Bobcat™ 230 Engine-Driven Welder (Vanguard)

Product Description

Miller Bobcat™ 230 Multiprocess Welder w/ Vanguard Engine #907847

The Miller Bobcat™ 230 is a cost-effective and easy-to-maintain engine-driven welder primarily designed for stick welding and creating power. In addition to Stick welding, the Bobcat performs MIG and Flux-cored welds on mild and stainless steel. An 11-gallon fuel capacity allows for a run-time of 8-11.7 hours dependent on load. Take your welding to the next level with the most popular engine-driven welder in the industry.

Highlights

• Multiprocess Capabilities – The Bobcat™ handles Stick, MIG and Flux-cored processes on mild and stainless steel.
• Easy to Use – The machine comes with single knob adjustment for fast and accurate setup.
• Easy Maintenance – The machine’s intuitive design allows for easier and quicker daily maintenance.
• Smooth Arcs – Take advantage of superior welding performance with 7018 and 6010 stick electrodes. Arcs start easily and create less spatter for higher productivity.

Industries

• Construction & Fabrication
• Farm & Ranch

What’s Included

• Bobcat™ 230 w/ Vanguard Engine

Benefits of the Miller Bobcat™ 230 Vanguard

• Separate Weld & Auxiliary Power – Benefit from full auxiliary power at any setting.
• Smaller & Lighter – The 230 is over 100 pounds lighter and 13 percent smaller than previous models, weighing less than any other engine-driven welder in its class.

• Product Literature

  • Bobcat 230 Spec Sheet (English)
  • Bobcat 230 Spec Sheet (Spanish)

  Processes

  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Stick (SMAW)

  General Specifications

  Title	Bobcat™ 230 (Vanguard)
  Industries Interests	Construction and Fabrication Farm and Ranch
  Amperage	20 A – 230 A
  Weldable Metals	Stainless Steel Steel
  Current Type	DC
  Portability	Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional)
  Engine Brand	Vanguard
  Engine Idle Speed	2400 RPM
  Engine Weld Speed	3600
  Fuel Tank Size	11 Gallon
  Fuel Type	Gasoline
  Horsepower	23 hp
  Weld Output	CC / CV
  Rated Output	CC/DC Stick 230 A at 29.2 V, 100% duty cycle, CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty cycle
  Single Phase Auxiliary Continuous Power	9500 W
  Single Phase Auxiliary Peak Power	11000 W
  Sound Rating	64 dB @ idle and 73 dB @ weld
  Applications	Fabrication Industrial Welding Mobile Fabrication & MRO
  Warranty	3 Years Miller’s True Blue Warranty

  SHIPPING DIMENSIONS
  Height:	26.50 Inches
  Width:	20.13 Inches
  Length:	37.06 Inches
  Weight:	376 Lb(s) 0 Oz
