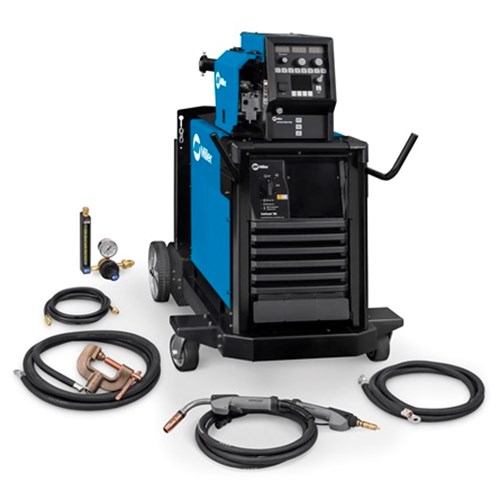

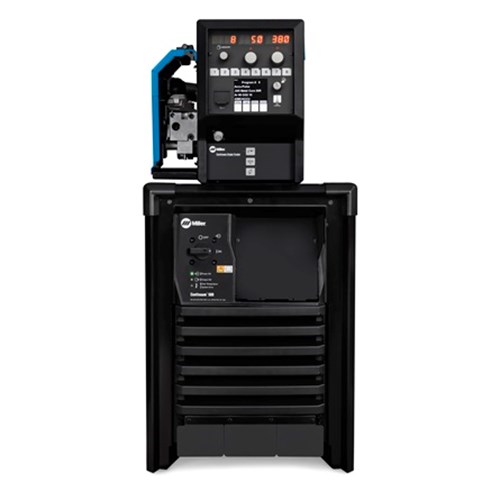

Miller Continuum™ 500 MIGRunner Package

Product Description

Miller Continuum™ 500 MIGRunner Package MIL951853001

A new generation of advanced industrial welding solutions improves productivity through weld quality, ease of use, and system flexibility.

What’s Included:

• Continuum™ 500
• Continuum Single Feeder
• 3′ Control Cable
• Running Gear
• 15′ Bernard™ BTB Gun 400A
• Contact tips
• .035/.045 in. V-groove Drive Rolls
• Industrial MIG 4/0 Kit
• Cable Hanger

Features:

All-New Power Source Design

• Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.

All-New Feeder Design

• Faster motor response provides the best arc starts with the least amount of spatter. Precise feeding operation for stable arc performance.

AccuLock S Consumables

• AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!

Superior Arc Performance

• Improved Accu-Pulse provides less spatter, better arc control, and less heat input. Very forgiving with changes in stick-out. Improved MIG performance. Consistently smooth arc starts reduce spatter. Improved RMD, designed for thin materials and gap filling with very low spatter. New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer.

Balanced-Pressure Drive-Roll Design and Tensioners

• Feed wire in its truest and straightest form for better feedability and to extend consumable life.

Easy Setup and Adjusting with Minimal Training

• 8 program/memory buttons USB functionality for updates, cloning, and more. Browser-based connection to view and adjust machine parameters, configure machine settings, and set locks and limits.

Tool-Less Lockable Rotatable Drive

• Allows operator to rotate the drive and eliminate severe bends in the wire feeding path. Extends gun-liner life. Aids in feeding difficult wires.

LCD Display

• New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics, and numeric values.

Adaptable to a Variety of Weld Cell Configurations

• Flexible user interface location (power source, feeder, remote operator interface)
• Information management systems: Insight Core (standard) and Insight Centerpoint (optional)
• Easily add processes and programs
• Wire feeder is easily configurable for standard spool sizes, 60-pound spools, or bulk-feeding systems

• Miller Continuum™ 500 MIGRunner Package Specifications

  General Specifications
  Portability	Running Gear / Cart (Standard)
  Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW)
  Net Width	28 in.
  Net Height	36 in.
  Net Length	48 in.
  Net Weight	250 lb.

  SHIPPING DIMENSIONS
  Height:	27.19 Inches
  Width:	17.50 Inches
  Length:	28.13 Inches
  Weight:	148 Lb(s) 0 Oz

  • Miller Continuum™ 500 MIGRunner Package #951853001
