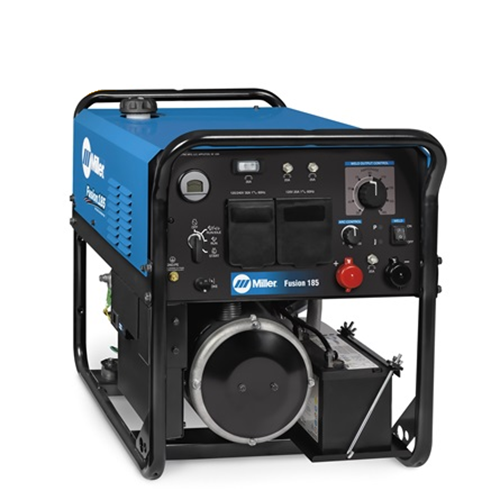

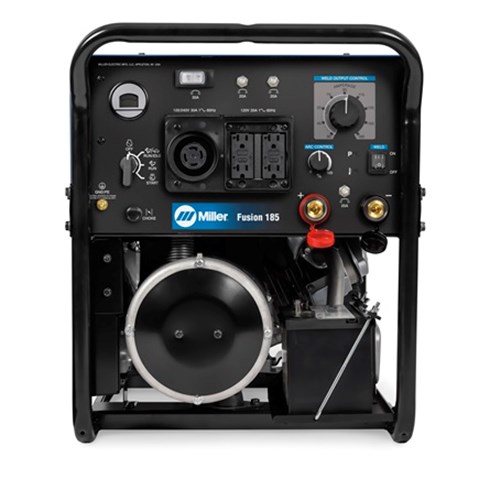

Miller Fusion 185 Welder/Generator w/ 120/240V Electric Start

Miller Fusion 185 Welder/Generator w/ 120/240V Electric Start

Current price is: $5,910.00. Original price was: $7,492.00.

21% off
SKU: 907781 Categories:

Product Description

Miller Fusion 185 Engine Powered Stick Welder w/ Electric Start #907781

Easier to transport

The Fusion welder/generator weighs 242 pounds. That’s up to 50 pounds less than similar machines, so moving the Fusion is easier and faster. Less time is spent waiting and more work can get done.

Less rework

Uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed, so it’s easier to produce clean welds that meet specifications and avoid the time and expense of rework.

Work-anywhere convenience

PowerShift technology provides weld capabilities using either the Fusion engine or 120/240-volt utility power. You’ll have the confidence of knowing that you can weld virtually anywhere – outdoors and indoors – with just one machine.

MVP

The multi-voltage plug (MVP) make it easy to connect the welder to either 120- or 240-volt power

Miller Fusion 185 Specifications
Processes Stick (SMAW)
Industries Interests Construction
Farm and Ranch
Maintenance and Repair – Field Operations
Maintenance and Repair – In Plant
Work / Service Trucks
Engine Brand Kohler
Engine Idle Speed 2500 RPM
Engine Weld Speed 3,600
Fuel Tank Size 6.25 gal. (23.7 L)
Fuel Type Gasoline
Horsepower 13.4 hp
Weldable Metals Steel
Rated Output 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle
Single Phase Generator Continuous Power 6200 W
Single Phase Generator Peak Power 6500 W
Input Voltage 110/115/120 V
220/230/240 V
Current Type DC
Portability Lift Eye (Optional)
Running Gear / Cart (Optional)
Weld Output CC
Warranty 3 Years
Miller’s True Blue Warranty

SHIPPING DIMENSIONS

Height: 24.75 Inches
Width: 20.13 Inches
Length: 31.25 Inches
Weight: 242 Lb(s) 0 Oz
