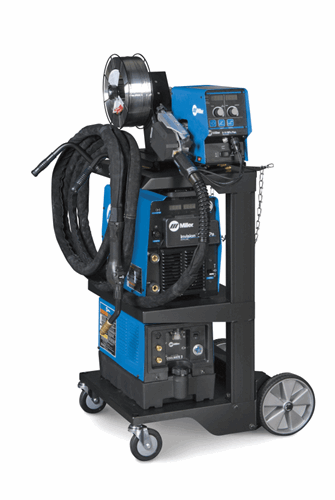

Miller Invision™ 352 MPa MIGRunner™ Package

Product Description

Miller Invision™ 352 MPa, S-74 MPa Plus (Single), Bernard™ BTB 400 A 15 Ft, MIGRunner™ Pkg 951411

MIG and synergic Pulsed MIG system with optimized weld programs for both steel and aluminum.

What’s Included

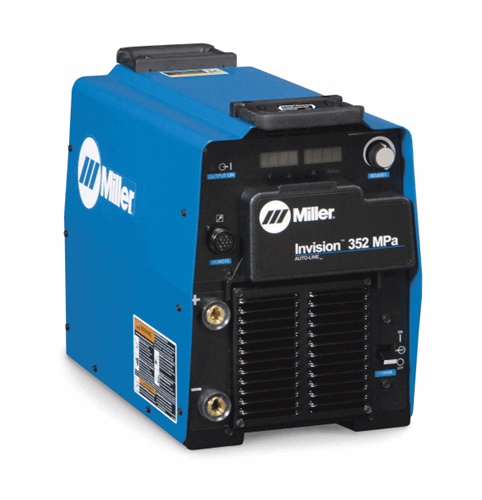

• Invision 352 MPa

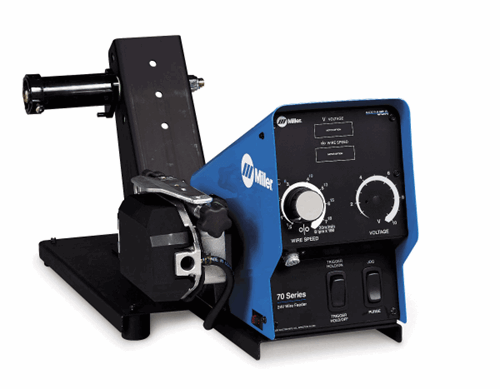

• Single 74 MPa Plus Feeder

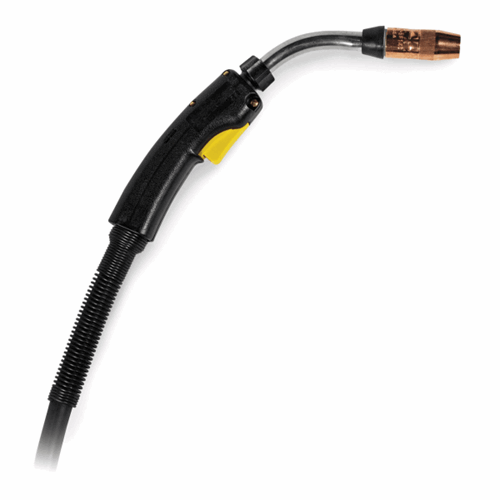

• BTB 400A Gun
• Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)
• .035-.045 reversible dual V drive rolls

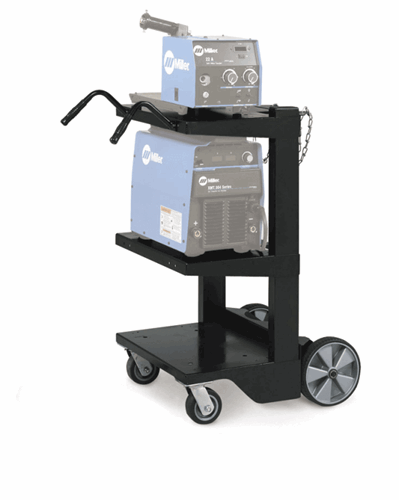

• Cart,MIGRunner
• Industrial MIG 4/0 Kit

• Miller Invision™ 352 MPa Specifications:
  Input Voltage Options	208 – 575 VAC, 50/60 Hz, 3- or 1-phase power
  Welding Output Range	CC mode: 5–425 A CV mode: 10–38 V
  Max Open Circuit Voltage	75 VDC
  Processes	MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW), & Air Carbon Arc Cutting and Gouging (CAC-A, 1/4-in. carbons max)
  Industrial Applications	Aerospace, Construction, Heavy Equipment Manufacturing, Infrastructure, Manufacturing, Railcar, Shipbuilding, Boat / Yacht, & High Purity Processing
  Weldable Metals	Steel, Metal Core, Aluminum, Stainless Steel, Nickel, Silicon Bronze, & Copper Nickel
  Performance Specifications
  	3-Phase	1-Phase
  Rated Output	350 A at 34 VDC, 60% duty cycle	300 A at 32 VDC, 60% duty cycle
  Ancilliaries
  Net Width	12.5 in. (318 mm)
  Net Height	17 in. (432 mm)
  Net Length	24 in. (610 mm)
  Net Weight	80 lb. (36.3 kg)
  Portability	Handles Running Gear / Cart (Standard)
  Warranty	3-year Miller’s True Blue Warranty



  SHIPPING DIMENSIONS
  Height:	46.00 Inches
  Width:	48.00 Inches
  Length:	60.00 Inches
  Weight:	302 Lb(s) 0 Oz

  • Miller Invision™ 352 MPa MIGRunner™ Pkg 951411 Spec Sheet
