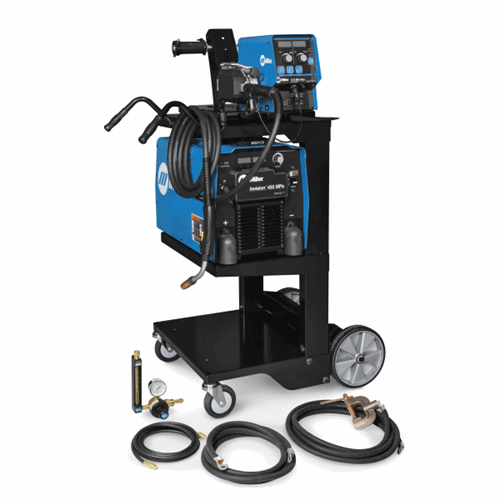

Miller Invision™ 450 MPa, S-74 MPa Plus (Single), Bernard™ BTB 400 A 15 ft, MIGRunner™ Pkg

Product Description

Miller Invision™ 450 MPa 230/460 V, S-74 MPa Plus (Single), Bernard™ BTB 400 A 15 ft, MIGRunner™ Pkg #951499

MIG and synergic Pulsed MIG system with optimized weld programs for both steel and aluminum.

What’s Included:

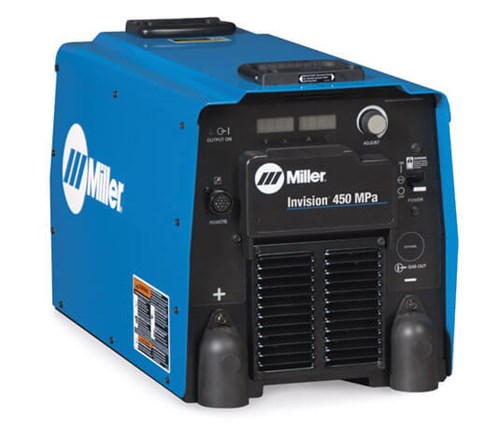

• Invision 450 MPa

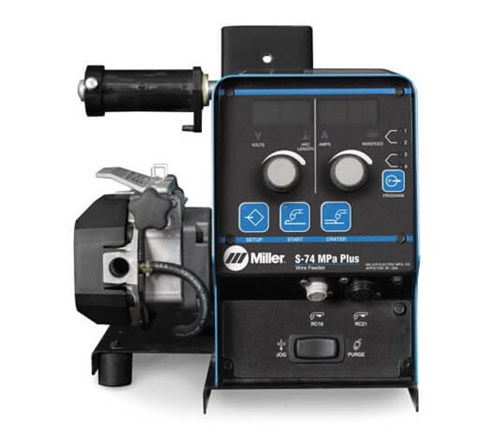

• Single 74 MPa Plus Feeder
• BTB 400A Gun
• Centerfire contact tips, .035 (QTY 3), .045 (QTY 2)
• .035-.045 reversible dual V drive rolls
• Running gear, cylinder rack

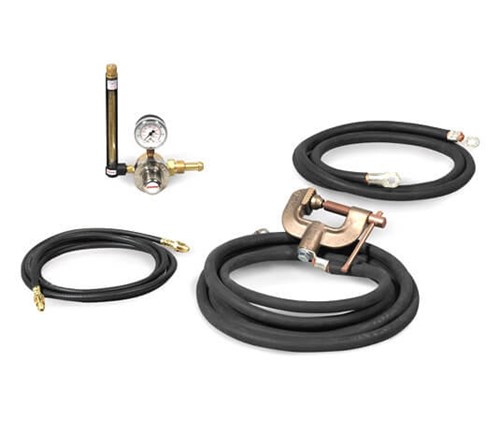

• 4/0 weld cables, Gas valve and gas hose

• Miller Invision™ 450 MPa #951499 Specifications:
  Input Voltage Options	230/460 or 575 VAC, 60 Hz, 3-phase power
  Welding Output Range	CC mode: 15–600 A CV mode: 10–38 V
  Max Open Circuit Voltage	90 VDC
  Processes	MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) & Air Carbon Arc Cutting and Gouging (CAC-A, 5/16-in. carbons max)
  Industrial Applications	Aerospace, Construction, Heavy Equipment Manufacturing, Infrastructure, Manufacturing, Railcar, Shipbuilding, Boat / Yacht & High Purity Processing
  Weldable Metals	Steel, Metal Core, Aluminum, Stainless Steel, Nickel, Silicon Bronze & Copper Nickel
  Rated Output	450 A at 36.5 VDC, 100% duty cycle
  Ancilliaries
  Net Width	14.5 in. (368 mm)
  Net Height	17.25 in. (438 mm)
  Net Length	27.125 in. (689 mm)
  Net Weight	122 lb. (55.3 kg)
  Portability	Handles Running Gear / Cart (Optional)
  Warranty	3-year Miller’s True Blue Warranty



  SHIPPING DIMENSIONS
  Height:	48.00 Inches
  Width:	48.00 Inches
  Length:	72.00 Inches
  Weight:	481 Lb(s) 0 Oz

  • Miller Invision™ 450 MPa MIGRunner™ Pkg 951499 Spec Sheet
