Miller Multimatic® 215 120/240V 50/60HZ 1PH w/ Welding Cart

Product Description

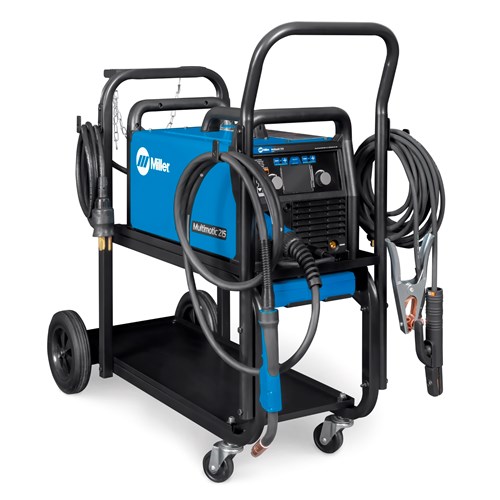

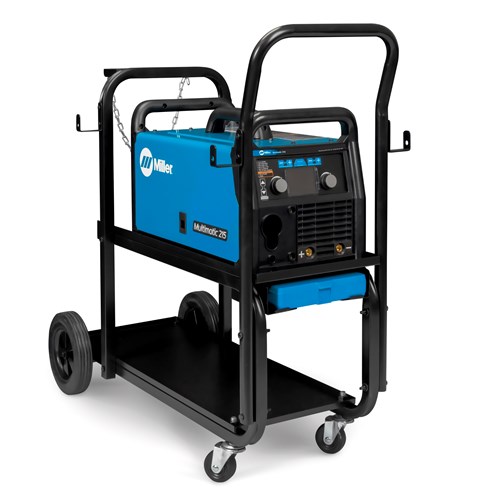

Miller MULTIMATIC® 215 120/240V 50/60HZ 1PH WITH WELDING CART #951000001

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel. Includes a Miller welding cart with a 7″ cylinder holder (301239).

What’s Included

•  WELDERS SUPPLY EXCLUSIVE!  Free gloves, cupholder, t-shirt & stickers with purchase
• Two contact tips for .030 in (0.8 mm) wire
• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• 10 ft (3 m) MDX™-100 MIG gun
• Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
• Multimatic® 215
• Material thickness gauge #229895
• Argon and AR/CO2 mix regulator/flow gauge with hose
• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
• Hook-and-loop cord wraps
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• Spool of Hobart® .030 in (0.8 mm) solid wire
• Welding cart (301239)


Features of the Multimatic 215

• Two Gas Connections: There are two gas connections on the back of the machine—one for MIG and one for TIG.

• Multi-Voltage Plug (MVP) Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Color LCD with Auto-Set™ Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!
• Multiprocess Capabilities: MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
• Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
• Fan-On-Demand™ power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled though the machine.
• Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch. The Spoolmate 100 and Spoolmate 150 are compatible with the Multimatic 215.
• Angled Drive System with Quick Select™ Drive Roll: Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
• Smooth-Start™ provides smooth, spatter-free MIG starts.
• Generator Compatible: The Multimatic 215 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• Heavy-duty construction with 8-inch rubber rear wheels.
• Includes front handles, cable holders and a plastic consumable box.
• Easily move gas cylinders no greater than 7 inches (178 mm) in diameter or 65 pounds (29.5 kg) in weight with your welder.
• Convert this single cylinder cart to a dual cylinder cart with conversion kit #301454.

Highlights

• Multiprocess Capabilities: MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills
• Color LCD with Auto-Set™ Elite: Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings
• Inverter Technology: Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine
• Angled Drive System with Quick Select™ Drive Roll: Robust, angled wire drive with Quick Select™ drive roll
• Auto Spool Gun Detect™: Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch
• Fan-On-Demand: Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants
• Multi-Voltage Plug: Allows for connection to 120- or 240-volt receptacles without tools

• Miller MULTIMATIC 215 Welder General Specifications:
  Input Power	120 V- 240V
  Rated Output	CV: MIG/Flux-cored 200 A @ 24 VDC, 20% Duty Cycle (240 V) 150 A @ 21.5 VDC, 40% Duty Cylcle (240 V) 110 A @ 19.5 VDC, 60% Duty Cycle (120 V) CC: TIG 190 A @ 17.6 VDC, 20%  Duty Cycle (240V) 140 A @ 15.6 VDC, 40% Duty Cycle (120 V) CC: Stick 190 A @27.6 VDC, 20% Duty Cycle (240 V) 90 A @ 23.6 VDC, 40% Duty Cycle (120 V)
  Welding Amperage Range	20 – 230
  Wire Speed	60- 600 IPM (1.5 – 15.2 m/min)
  Metal Thickness	MIG 24 ga. – 3/8 in. (0.8 – 9.5 mm) steel 18 ga. – 3/8in. (1.2 – 9.5 mm) aluminum TIG 24 ga. – 1/4 in. (0.8 – 6.4 mm) steek STICK 16 ga. – 3/8 in. (1.6 – 9.5 mm) steel
  Wire Diameter Capacity	.023 – .035 in (0.6 – 0.9 mm) Solid Steel .023 – .035 in (0.6 – 0.9 mm) Stainless .030 – .045 in (0.8 – 1.1 mm) Flux Cored
  Spool Gun Compatibility	Spoolmate™ 100, Spoolmate 150
  Weight	38 lbs. (17.2 kg)
  Dimensions	H: 12.5 in (318 mm) W: 11.25 in (286 mm) D: 20.5.0 in (521 mm)



  SHIPPING DIMENSIONS
  Height:	29.00 Inches
  Width:	48.00 Inches
  Length:	57.00 Inches
  Weight:	89 Lb(s) 13 Oz
