Miller Multimatic 215 Multi-Process Welder

Product Description

Miller Multimatic 215 MIG/Stick/TIG Welding Machine #907693

The Miller Multimatic 215 is Miller’s new generation of portable welders. With the versatility of MIG, TIG and stick welding capability, a compact design and plenty of power, it’s the perfect multi-process welder for a wide range of light industrial uses. This standard Multimatic 215 package (MIG and stick welding) includes the power source, wire feeder and mig gun.

A Welder That Grows With You. When you’re ready to expand into TIG welding, simply purchase Miller’s TIG Kit Package. You get a Weldcraft A-150 TIG torch with a flow-through Dinse connector, flow regulator and gas hose, a foot control (RFCS-RJ45) and an AK2C torch accessory kit.

Download literature of this machine:

Processes

The Miller Multimatic 215 is capable of MIG, DC TIG, and DC stick welding. It handles steel thicknesses from 24 gauge to 3/8 inch for MIG and DC stick, and up to 1/4 inch for TIG. For aluminum, it MIG welds 18 gauge to 3/8 inch.

• MIG (GMAW) and Flux-cored (FCAW) – 24 ga.–3/8 in. steel, 18 ga.–3/8 in. aluminum
• DC TIG (GTAW) – 24 ga.–1/4 in. steel
• DC stick (SMAW) – 16 ga.–3/8 in. steel

Need to TIG weld aluminum? Upgrade to the Multimatic 220 AC/DC for AC/DC & pulsed TIG capabilities, or purchase a TIG upgrade kit.

What Sets The Multimatic 215 Multiprocess Welder Apart?

Compact size, ample power.

Although it weighs in at just 38 pounds and is surprisingly compact, the Multimatic 215 brings serious welding power to the job. With 230 amps on tap, you can easily weld up to 3/8” mild steel in a single pass (MIG weld capacity). Add the optional Running Gear/Cylinder Rack (301239) for a maneuverable, on-the-go setup.

Versatile, easy to set up, and lays a beautiful weld

Miller designed the Multimatic 215 for ease of use and great results. Their Smooth-Start™ design enables consistently smooth, spatter-free MIG starts. Angled wire drive with Miller’s Quick Select™ drive roll makes for smooth feeds and quick wire changes with virtually any wire.

Features of the Multimatic 215 Multiprocess Welder

• Multiprocess Capability – The Multimatic 215 handles MIG, flux-cored, DC TIG and DC stick welding.

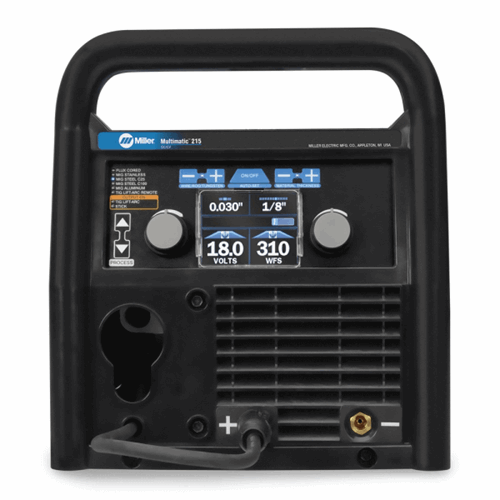

• User-Friendly Interface – A color LCD control panel with intuitive controls makes quick adjustments easy.
• Smooth-Start™ – Miller’s Smooth-Start™ technology delivers consistently smooth, spatter-free MIG starts.

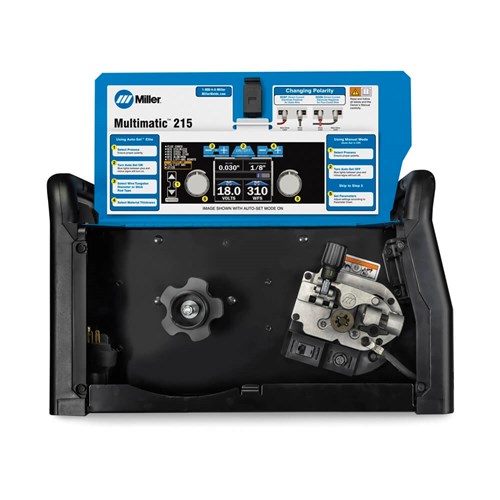

• Angled Wire Drive – Smooth feeding and quick wire changes courtesy of an angled wire drive and Miller’s Quick Select™ drive roll.
• Auto Spool Gun Detect™ – No need to change any settings on your power source, the Multimatic 215 automatically detects when a MIG gun or Miller Spoolmate 100 is plugged in.
• Multi-voltage Plug – Miller’s multi-voltage plug (MVP) lets you plug into either 120 or 240-volt power receptacles. Simply choose the plug that fits the receptacle, connect it to your power cord, and plug it in.
• Thermal Overload Automatic Shutdown – Protects against overheating by automatically shutting down power if airflow through the unit is blocked or duty cycle is exceeded.
• Fan-On-Demand – Miller’s power source cooling system only runs when it’s needed, so noise and energy use is reduced, as well as the amount of airborne contaminants pulled into the machine.
• Miller True Blue 3-Year Warranty – Miller covers the Multimatic 215 for three years (parts and labor) and the gun for 90 days (parts and labor).

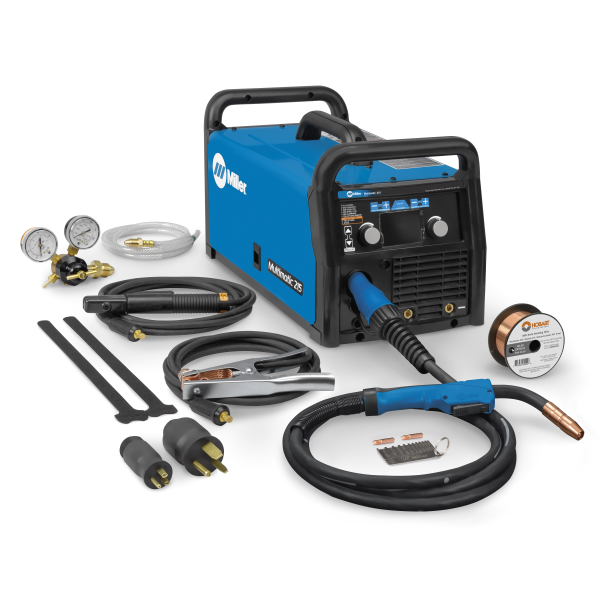

What’s Included:

•  WELDERS SUPPLY EXCLUSIVE!  Free gloves, cupholder, t-shirt & stickers with purchase
• Power source
• 6.5 ft. (2 m) power cord with MVP plugs for 120 V and 240 V
• 10 ft (3 m) MDX™-100 MIG gun

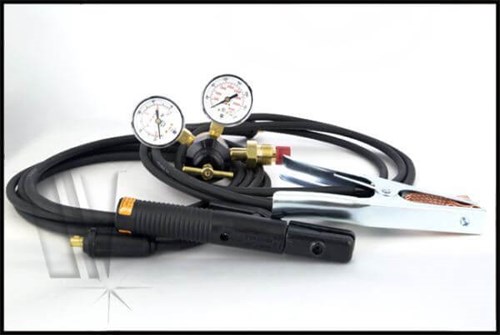

• 13 ft. (4 m) cable electrode holder and 25 mm Dinse-style connector
• 10 ft. (3 m) work cable with clamp and 25 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon and AR/CO2 mix
• Hobart® spool of .030 in. (0.8 mm) solid wire
• Two contact tips for .030 in. (0.8 mm) wire
• Quick Select™ drive roll for .024 in. (0.6 mm) or .030/.035 in. (0.8/0.9 mm) solid wire, and .030/.035 in. (0.8/0.9 mm) flux-cored wire
• Material thickness gauge 229895
• Hook-and-loop cord wraps

Not included: Power cord and strain relief, TIG kit for TIG welding, shielding gas, safety equipment.

Applications

• Farm and Ranch
• Field Maintenance and Repair
• Metal Art/Sculpture
• Motorsports (car, truck, cycles, etc.)
• Vocational Schools/Training

Highlights

• Multiprocess Capability: Handles MIG, flux-cored, DC TIG and DC stick welding
• User-Friendly Interface: Color LCD control panel with intuitive controls
• Smooth-Start™: Delivers consistently smooth, spatter-free MIG starts
• Angled Wire Drive: Smooth feeding and quick wire changes
• Auto Spool Gun Detect™: Automatically detects when a MIG gun is plugged in
• Multi-voltage Plug: Lets you plug into either 120 or 240-volt power receptacles
• Thermal Overload Automatic Shutdown: Protects against overheating by automatically shutting down power
• Fan-On-Demand: Miller’s power source cooling system only runs when it’s needed
• Miller True Blue 3-Year Warranty: Miller covers the Multimatic 215 for three years

• Miller MULTIMATIC 215 #907693 – Welder General Specifications:
  Brand	Miller Electric
  Model	Multimatic 215
  SKU	907693
  Processes	Multi-Process (Mig/Flux Core, Tig & Stick)
  Skill Level	Suitable for Professionals, fabricators, hobbyists, beginners & students
  Input Power	120 V- 240V
  Rated Output & Duty Cycle	CV: MIG/Flux-cored 200 A @ 24 VDC, 20% Duty Cycle (240 V) 150 A @ 21.5 VDC, 40% Duty Cylcle (240 V) 110 A @ 19.5 VDC, 60% Duty Cycle (120 V) CC: TIG 190 A @ 17.6 VDC, 20%  Duty Cycle (240V) 140 A @ 15.6 VDC, 40% Duty Cycle (120 V) CC: Stick 190 A @27.6 VDC, 20% Duty Cycle (240 V) 90 A @ 23.6 VDC, 40% Duty Cycle (120 V)
  Welding Amperage Range	20 – 230
  Wire Speed	60- 600 IPM (1.5 – 15.2 m/min)
  Metal Thickness	MIG 24 ga. – 3/8 in. (0.8 – 9.5 mm) steel 18 ga. – 3/8in. (1.2 – 9.5 mm) aluminum TIG 24 ga. – 1/4 in. (0.8 – 6.4 mm) steek STICK 16 ga. – 3/8 in. (1.6 – 9.5 mm) steel
  Wire Diameter Capacity	.023 – .035 in (0.6 – 0.9 mm) Solid Steel .023 – .035 in (0.6 – 0.9 mm) Stainless .030 – .045 in (0.8 – 1.1 mm) Flux Cored
  Spool Gun Compatibility	Spoolmate™ 100, Spoolmate 150
  Portability	Lightweight @ lbs
  Warranty	Miller True Blue 3-Year Warranty

  • Multimatic 215 Spec Sheet



  SHIPPING DIMENSIONS
  Height:	12.50 Inches
  Width:	11.25 Inches
  Length:	20.50 Inches
  Weight:	38 Lb(s) 0 Oz

  iew Product Literature:

  • Miller Multimatic 215 #907693 – Owner’s Manual (English)
  • Miller Multimatic 215 #907693 – Spec Sheet

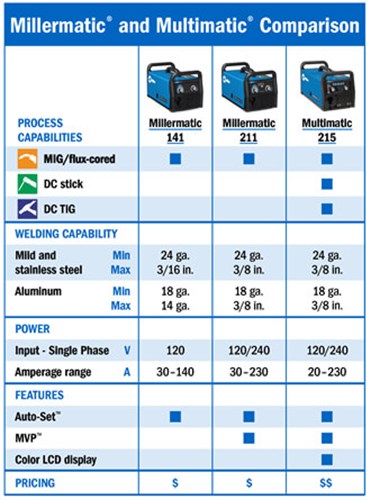

  • Multimatic vs Millermatic Comparison Chart
