Miller Multimatic 220 AC/DC Multi-Process Welder

Name: Miller Multimatic 220 AC/DC Multi-Process Welder
SKU: 907757
Availability: InStock

0 customer reviews

Sold: 0

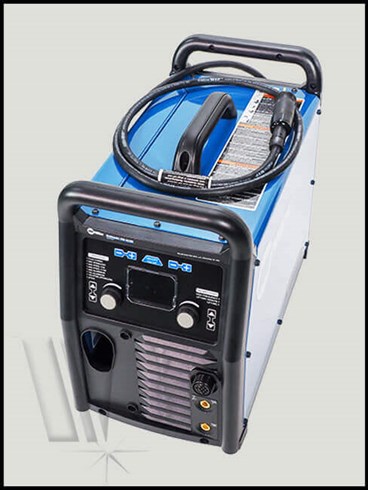

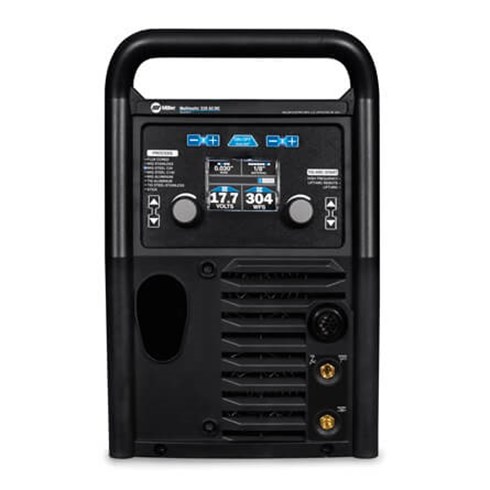

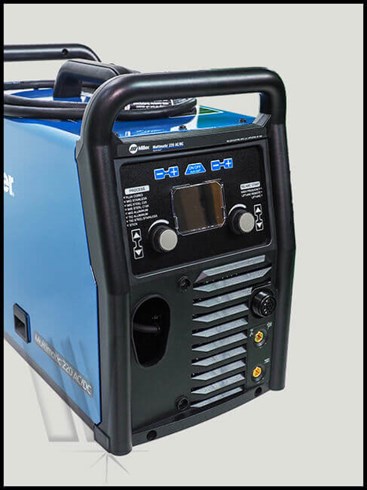

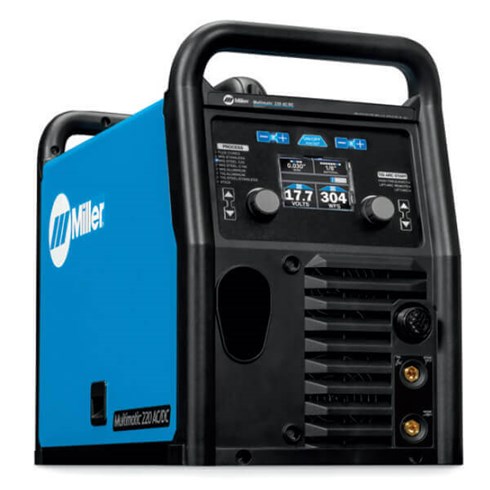

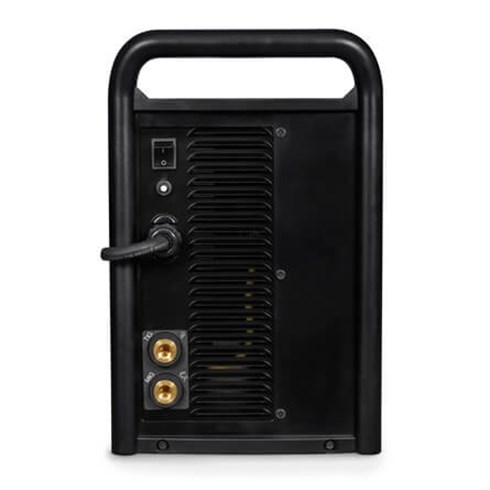

Miller Multimatic 220 AC/DC Multi-Process Welder

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 2

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 3

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 4

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 5

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 6

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 7

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 8

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 9

Miller Multimatic 220 AC/DC Multi-Process Welder - Image 10

View details

Current price is: $4,285.00. Original price was: $5,426.53.

21% off

SKU: 907757 Categories: MIG Welding Welder

Product Description

Miller Multimatic 220 AC/DC Multiprocess Welder #907757

The Miller Multimatic 220 AC/DC Multiprocess welder is a hobbyist and small shop’s dream! With the freedom to weld any process; MIG, Flux-Cored, Stick, and AC/DC TIG – with one portable, powerful welder. Demonstrates excellent arc quality on both 120 and 240 Volt power!

Coming standard with a color LCD screen, this multi-process welder also features Miller’s Auto-Set Elite™. Auto-Set Elite™ allows you to set TIG, MIG and Stick welding parameters automatically and only requires the user to enter metal thickness and tungsten electrode or welding wire diameter, and allows you to tune weld setting manually to fit your personal preferences. It uses Miller’s exclusive multi-voltage plug (MVP™) to run on either 120 volt or 240 volt input power and weighs only 56 pounds.

Download literature of this machine:

2024 Spec Sheet – Multimatic 220 Miller True Blue Warranty Multimatic vs Millermatic Comparison

Processes

The Miller Multimatic 220 AC/DC is capable of MIG, AC/DC TIG, and DC stick welding. It handles steel thicknesses from 24 gauge to 3/8 inch for MIG and DC stick, and up to 1/4 inch for TIG. For aluminum, it manages 18 gauge to 3/8 inch with MIG and 24 gauge to 1/4 inch with TIG.

MIG (GMAW) and Flux-cored (FCAW) – 24 ga.–3/8 in. steel, 18 ga.–3/8 in. aluminum
AC/DC TIG (GTAW) and Pulsed TIG (GTAW-P) – 24 ga.–1/4 in. steel and aluminum
DC stick (SMAW) – 16 ga.–3/8 in. steel

Miller multi-process welder with MIG, Stick & AC/DC TIG welding capabilities

Upgrade & Save

Save on Multimatic 220 accessories by upgrading to one of the bundles below.

Wireless Foot Control Pkg (+$1200) +$100

Welding Cart + Wireless Foot Control Pkg (+$1700) +$506

What’s Included

WELDERS SUPPLY EXCLUSIVE! Free gloves, cupholder, t-shirt & stickers with purchase
Multimatic® 220 AC/DC
6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
10 ft MDX™-100 MIG Welding Gun
13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
RFCS-14 HD foot control with 20 ft (6 m) cord
10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
Two Argon and AR/CO2 mix regulator/flow gauge with hoses
Spool of Hobart® .030 in (0.8 mm) solid wire
Two contact tips for .030 in (0.8 mm) wire
Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
AK2C TIG torch accessory kit
Material thickness gauge #229895
Hook-and-loop cord wraps

Not Included: Safety Equipment, Spool gun for aluminum MIG welding, Shielding gas

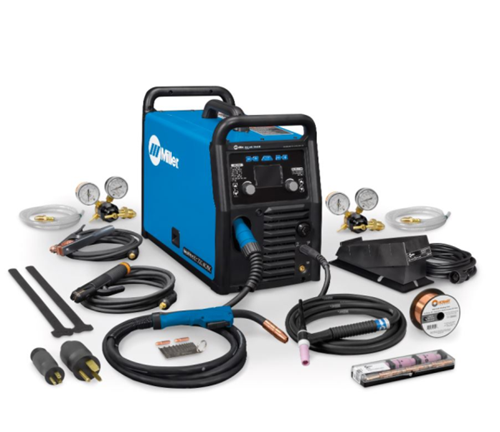

Miller Multimatic 220 Multiprocess Welder with AC/DC TIG #907757 - What's Included

Standard Features of the Miller Multimatic 220 AC/DC Multiprocess Welder 907757

The Miller Multimatic 220 AC/DC offers amperage ranges of 30-230A for MIG, 20-210A for TIG, and 30-200A for stick welding. When connected to 110V power, it provides rated outputs of 105A for MIG, 130A for TIG, and 90A for stick. On 220V power, rated outputs increase to 170-200A for MIG, 210A for TIG, and 200A for stick.

This machine is a completely portable, all-in-one welding package that comes with:

Intuitive LCD Screen
Manual Mode with Additional Adjustments
AC/DC TIG (TIG welds aluminum)
AC Balance – adjustable from 60-80%
AC Frequency – adjustable from 60-150 Hz
DC Pulse – adjustable from OFF-150 pulses per second (PPS)
Tungsten Size Selection
TIG Post-Flow – adjustable from Auto-25 seconds (accessible through service menu)
Stick: DIG Control
Lift-Arc™ and High-Frequency TIG Starts
Two Gas Connections (MIG and TIG)
Pro-Set™ in TIG and Stick Manual Modes
Quick Select™ Drive Roll
Standard 14-Pin Connector

Miller MULTIMATIC 220 AC/DC Multiprocess Welder General Specifications:
Input Voltage	110/115/120 V 220/230/240 V
Input Phase	1-Phase
Input Hz	50 / 60 Hz
Weldable Metals	Aluminum Stainless Steel Steel
Output Amperage Range	MIG: 30–230 A AC/DC TIG: 20–210 A DC stick: 30–200 A
Current Type	AC / DC
Max Open Circuit Voltage	45 VDC
Spool Gun Compatibility	Spoolmate™ 100, Spoolmate 150
Wire Feed Speed	1,5 m/min – 15.2 m/min 60 IPM – 600 IPM
Weld Output	CC / CV
Portability	Handle(s) Running Gear / Cart (Optional)
Industrial Applications	Light fabrication Maintenance and repair Auto body Farm/home
