Miller Multimatic 220 AC/DC Multi-Process Welder
Miller Multimatic 220 AC/DC Multi-Process Welder
$4,285.00Current price is: $4,285.00. Original price was: $5,426.53.
21% offProduct Description
Only 56 lbs
MIG
AC/DC TIG
DC Stick
Miller Multi-Voltage Plug
Single Phase
3-Year Miller Warranty
Miller Multimatic 220 AC/DC Multiprocess Welder #907757
The Miller Multimatic 220 AC/DC Multiprocess welder is a hobbyist and small shop’s dream! With the freedom to weld any process; MIG, Flux-Cored, Stick, and AC/DC TIG – with one portable, powerful welder. Demonstrates excellent arc quality on both 120 and 240 Volt power!
Coming standard with a color LCD screen, this multi-process welder also features Miller’s Auto-Set Elite™. Auto-Set Elite™ allows you to set TIG, MIG and Stick welding parameters automatically and only requires the user to enter metal thickness and tungsten electrode or welding wire diameter, and allows you to tune weld setting manually to fit your personal preferences. It uses Miller’s exclusive multi-voltage plug (MVP™) to run on either 120 volt or 240 volt input power and weighs only 56 pounds.
Download literature of this machine:
2024 Spec Sheet – Multimatic 220 Miller True Blue Warranty Multimatic vs Millermatic Comparison
Processes
The Miller Multimatic 220 AC/DC is capable of MIG, AC/DC TIG, and DC stick welding. It handles steel thicknesses from 24 gauge to 3/8 inch for MIG and DC stick, and up to 1/4 inch for TIG. For aluminum, it manages 18 gauge to 3/8 inch with MIG and 24 gauge to 1/4 inch with TIG.
- MIG (GMAW) and Flux-cored (FCAW) – 24 ga.–3/8 in. steel, 18 ga.–3/8 in. aluminum
- AC/DC TIG (GTAW) and Pulsed TIG (GTAW-P) – 24 ga.–1/4 in. steel and aluminum
- DC stick (SMAW) – 16 ga.–3/8 in. steel
Upgrade & Save
Save on Multimatic 220 accessories by upgrading to one of the bundles below.
Wireless Foot Control Pkg (+$1200) +$100
Welding Cart + Wireless Foot Control Pkg (+$1700) +$506What’s Included

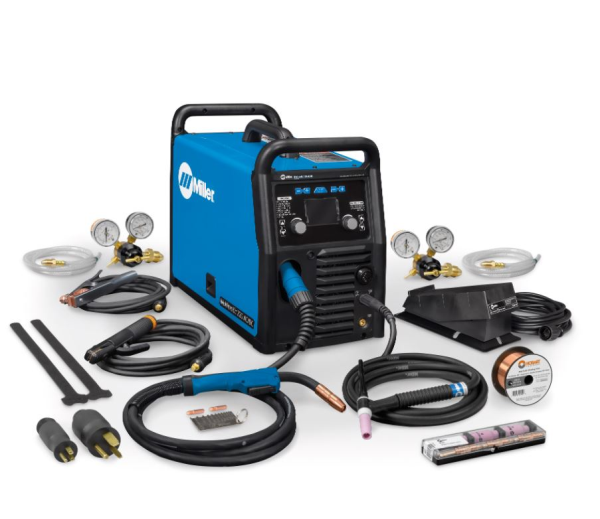

- WELDERS SUPPLY EXCLUSIVE! Free gloves, cupholder, t-shirt & stickers with purchase
- Multimatic® 220 AC/DC
- 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
- 10 ft MDX™-100 MIG Welding Gun
- 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
- 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
- RFCS-14 HD foot control with 20 ft (6 m) cord
- 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
- Two Argon and AR/CO2 mix regulator/flow gauge with hoses
- Spool of Hobart® .030 in (0.8 mm) solid wire
- Two contact tips for .030 in (0.8 mm) wire
- Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
- AK2C TIG torch accessory kit
- Material thickness gauge #229895
- Hook-and-loop cord wraps
Not Included: Safety Equipment, Spool gun for aluminum MIG welding, Shielding gas
Miller MULTIMATIC 220 AC/DC Multiprocess Welder General Specifications: |
|
|---|---|
| Input Voltage | 110/115/120 V 220/230/240 V |
| Input Phase | 1-Phase |
| Input Hz | 50 / 60 Hz |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Output Amperage Range | MIG: 30–230 A AC/DC TIG: 20–210 A DC stick: 30–200 A |
| Current Type | AC / DC |
| Max Open Circuit Voltage | 45 VDC |
| Spool Gun Compatibility | Spoolmate™ 100, Spoolmate 150 |
| Wire Feed Speed | 1,5 m/min – 15.2 m/min 60 IPM – 600 IPM |
| Weld Output | CC / CV |
| Portability | Handle(s) Running Gear / Cart (Optional) |
| Industrial Applications | Light fabrication Maintenance and repair Auto body Farm/home |
SHIPPING DIMENSIONS |
|
| Height: | 17.50 Inches |
| Width: | 11.25 Inches |
| Length: | 21.50 Inches |
| Weight: | 56 Lb(s) 0 Oz |
