Miller Multimatic® 255 Multiprocess Welder w/ EZ-Latch™ Dual Cylinder Running Gear & TIG Kit

Product Description

Miller Multimatic® 255 Multiprocess Welder 951768 w/ EZ-Latch™ Dual Cylinder Running Gear & TIG Kit

Built for MRO and light manufacturing/fabrication professionals looking for a smaller, versatile welder to improve efficiency and productivity. This 250-amp inverter multiprocess welder is highly versatile for faster uptime and performance, and extremely portable. The Multimatic® 255 comes equipped with an easy to read interface with a 7-inch color LCD display. Welding set-up is designed to be efficient with simple programmability and predefined weld settings to avoid having to set up programs you don’t need.

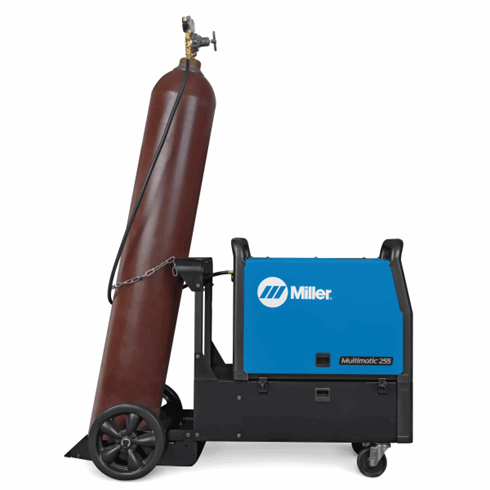

EZ-Latch running gears are available in single cylinder and dual cylinder models. Bottle forward technology makes for easy transportation of the gas cylinder by carrying them just above the ground for easy tilt-on access. Simply unlatch the machine for easy portability without the running gear.

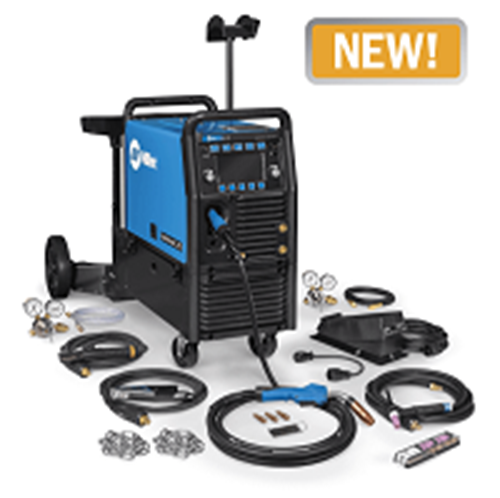

What’s Included:

• Power source with 10 ft. (3 m) industrial power cord
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
• 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
• 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
• Flow gauge regulator and gas hose for argon or AR/CO2 mix
• .035/.045 in. (0.9/1.2 mm) reversible drive rolls
• Extra contact tips
• Material thickness gauge
• EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
• Multimatic 255 TIG kit
• Two chains to secure gas cylinders

Features:

MDX-250 MIG Gun w/ AccuLock™ S consumables – AccuLock liner loads from the front and locks at the front and back to ensure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.

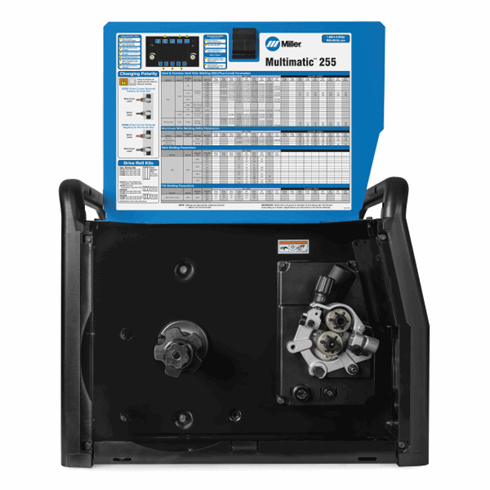

2 Drive Roll Industrial Wirefeed System – Cast Aluminum 2 Drive Roll system with interchangeable drivesrolls provides consistent wire feed from the start of the weld to the finish.

Versatility – Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG

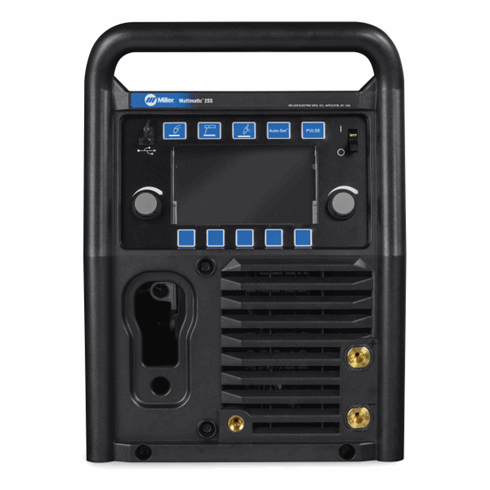

Easy-to-understand interface – 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.

Auto-Line™ Technology – For portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–575 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

Pulsed MIG welding delivers higher quality – Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past

Auto-Set™ Elite – offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

Program mode allows easy save and recall of favorite weld settings – Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.

Portability – Machine only weighs 84 lb – Weight is reduced by more than 50 percent compared to transformer welding machines

EZ-Latch™ Dual Cylinder Rack with Elevated Gun and Cable Rack – Quickly disconnects from the machine and enables portability. Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free.

View all of our welding machines including Multi-Process Welders available at Welders Supply Company.

Highlights

• MDX-250 MIG Gun w/ AccuLock™ S consumables: AccuLock liner loads from the front and locks at the front and back to insure proper alignment
• Versatility: Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG
• Easy-to-understand interface: 7-inch color LCD display ensures proper machine setup and parameter selection
• Pulsed MIG welding delivers higher quality: Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding
• Auto-Set™ Elite: Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels
• Program mode: Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings
• Portability : Weight is reduced by more than 50 percent compared to transformer welding machines
• EZ-Latch™ Dual Cylinder Rack with Elevated Gun and Cable Rack: Quickly disconnects from the machine and enables portability
• Generator Compatible: The Multimatic 255 will be able to operate and provide full output when powered by generators
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next

• Miller Multimatic® 255 Multiprocess Welder Specifications

  General Specifications
  Weldable Metals	Steel Stainless Steel Aluminum
  Input Voltage	208 V 220/230/240 V 460/480 V 575 V
  Input Phase	1-Phase
  Input Hz	50/60 Hz
  Input Amperage	34.7
  Current Type	DC
  Max Open Circuit Voltage	81 VDC
  Wire Feed Speed	50 IPM – 800 IPM
  Weld Output	CC/CV

  SHIPPING DIMENSIONS
  Height:	42.00 Inches
  Width:	19.00 Inches
  Length:	40.00 Inches
  Weight:	180 Lb(s) 0 Oz

  • 951768 Miller Multimatic 255 Multiprocess Welder Spec Sheet
