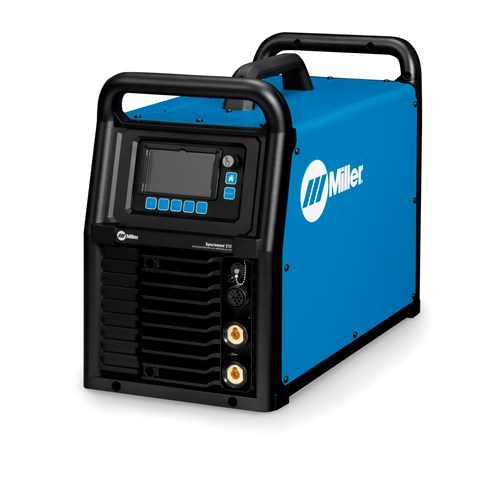

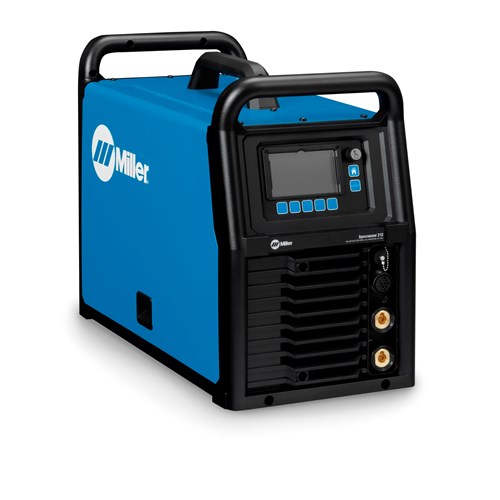

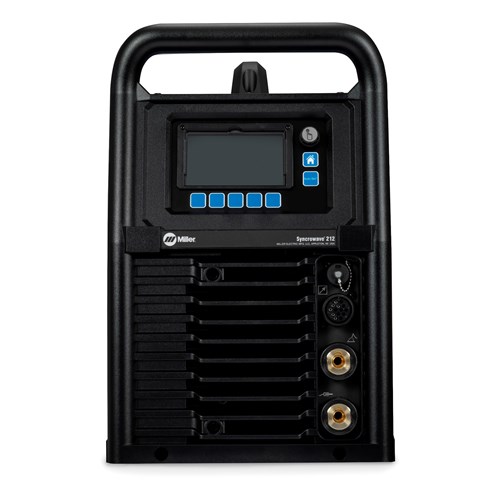

Miller Syncrowave® 212 AC/DC TIG Welder, Air Cooled Package –

Product Description

Miller Syncrowave® 212 AC/DC TIG Welder, Air Cooled Package #907911

The Miller® Syncrowave 212 is designed to be the versatile TIG welder that can tackle the next job you take on. Now with an LCD interface and Auto-Set feature that gets you ready to weld faster than ever before. Designed for both welding professionals and serious enthusiasts, this welder provides superior precision and durability, making it the ideal tool for your welding applications.

Industries

• Custom Fabrication
• Job Shops
• Motorsports
• Maintenance/Repair
• Operations
• Light Manufacturing

What’s Included

• Syncrowave® 212
• Industrial Power Cords (120V and 240V)
• A-150 Air-Cooled Torch
• Accessory Kit (gas lens insulator, collets, gas lenses, & tungsten)
• Wired Foot Pedal
• Gas Hose
• Regulator
• Ground Clamp
• Electrode Holder
• Material Thickness Gauge

Benefits of the Syncrowave 212 Welding Machine

• Auto-Set™ Technology – Automatically sets optimal weld parameters. Simply select the process, material type, thickness, joint type, and tungsten size. Provides recommended settings for gas flow, cup size, and filler rod diameter, so you’re ready to TIG weld with confidence.

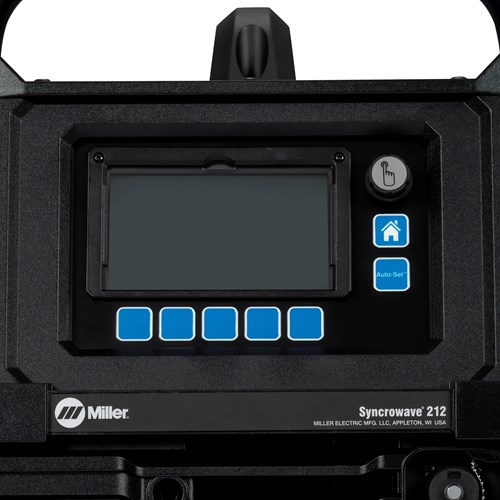

• User-Friendly Interface – Easy-to-understand 4.5-inch LCD display with dynamic images and on-screen explanations ensures proper setup and parameter selection.
• AC Balance Control (TIG) – Adjustable oxide removal for high-quality aluminum welds, ensuring clean, strong joints.
• AC Frequency Control (TIG) – Adjusts the width of the arc cone (typically 20-250 Hz) for improved arc direction and control.
• Pulse TIG Welding – Enhances puddle agitation, arc stability, and travel speeds while reducing heat input and distortion for cleaner, more precise welds.
• Multi-Language Support – Interface available in English, Spanish, and French for ease of use in diverse work environments.

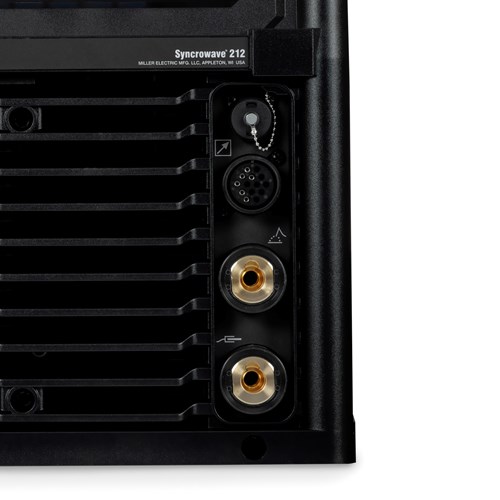

• Spool Gun Compatibility – Dedicated 4-pin receptacle for easy MIG spool gun connection, improving versatility.
• Coolmate 1S Integration – Dedicated receptacle for seamless cooler hookup, ensuring optimal TIG torch cooling.
• Cooler-On-Demand – Efficient cooling system activates only when needed, reducing power consumption and extending component life.

• Processes

  • AC/DC TIG (GTAW)
  • Pulsed DC TIG (GTAW-P)
  • DC Stick (SMAW)
  • MIG (GMAW)*

  *Syncrowave 212 optimized for aluminum MIG with the SpoolmateTM 150

  Quick Specifications

  Title	Syncrowave® 212
  Industrial Applications	Custom Fabrication Job Shops Welders new to TIG Motorsports Light Manufacturing Hobbyist Maintenance/Repair Operations
  Input Power	120–240 V, 1-phase power, 50/60 Hz
  Amperage Range	AC/DC TIG: 20–210 A, MIG: 30–175 A, DC Stick: 30–200 A
  Rated Output	130 A at 15.2 V, 60% duty cycle
  Net Weight	54 lb. (24.5 kg) (air-cooled machine only)
  Warranty	Miller’s True Blue Warranty

  SHIPPING DIMENSIONS
  Height:	15.63 Inches
  Width:	25.00 Inches
  Length:	26.25 Inches
  Weight:	80 Lb(s) 0 Oz

  • Miller Syncrowave 212 VP Sheet (English)
