Miller Trailblazer® 330 Diesel Engine-Driven Welder (Kubota) w/ Excel™ Power

Product Description

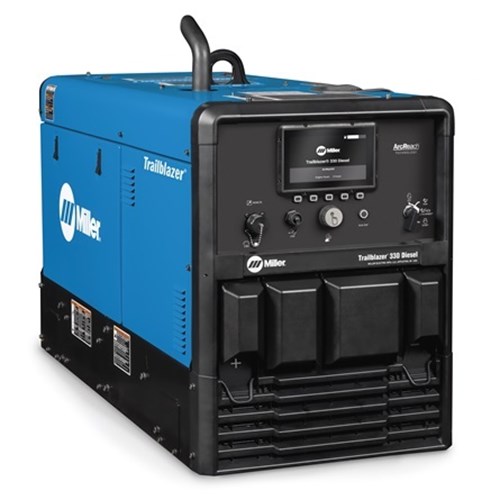

Miller Trailblazer® 330 Diesel Welder/Generator w/ Excel™ Power (Kubota Engine) #907849001

The Miller Trailblazer® 330 Diesel engine-driven welder features a robust Kubota engine coupled with Miller’s proprietary Excel Power technology. This advanced system enables the welder to provide a consistent 120 V auxiliary power output even during idling.

The Trailblazer® delivers up to 12,000 W peak power and 10,500 W continuous power, solidifying its position as the most capable compact machine within the 300-amp class. Its impressive fuel efficiency and minimal noise contribute to productive and profitable work environments.

Try It For Yourself! Launch Miller’s Trailblazer 330 Simulator

What’s Included:

• Trailblazer diesel welder w/ Excel, Kubota engine #907849001
• Not included: Weld Leads

Output:

• 12,000 W peak power (10,500 W continuous)
• DC stick: 20–330 A
• MIG/flux cored: 15–40 V
• DC TIG: 20–330 A

Applications:

• Fabrication
• Maintenance
• Repair
• Structural Steel Work
• Sheet Metal
• Pipe

Direct spool gun connection

Highlights

• Dynamic DIG™: Automatically adjusts current to clear shorts, creating a consistent arc tailored to the application and welder.
• QuietPulse™: DC pulse welding with a modified waveshape reduces noise by providing a gradual transition between background and peak amperage.
• ArcReach® Technology: Adjusts amperage and voltage at the operator’s location via existing weld cables.
• Auto-Speed™ Technology: Reduces fuel consumption, maintenance costs and noise by adjusting the engine speed to match weld and battery charge demands.

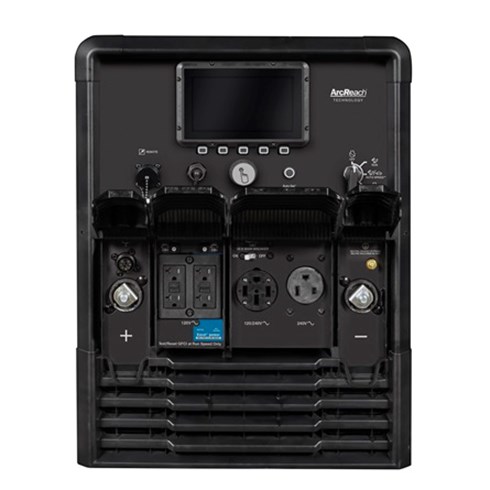

• Excel™ Power: A Miller exclusive – delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle!

Benefits of the Trailblazer 330 Diesel w/ Excel #907849001:

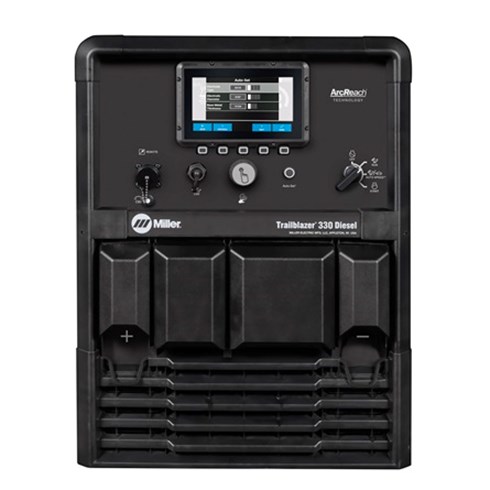

• The digital interface streamlines and simplifies machine setup.
• Exceptional arc performance offers easy arc starts and reduced spatter.
• Independent weld and auxiliary power ensure full auxiliary power at any setting.
• The intuitive design of the welder makes daily maintenance a breeze.



Download literature of this machine:

2024 Spec Sheet – Trailblazer 330 Diesel Trailblazer vs Bobcat – Product Comparison Miller True Blue Warranty

Trailblazer® 330 Diesel w/ Excel™ (Kubota) #907849001 – Specifications
Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Pulsed TIG (GTAW-P) Stick (SMAW) TIG DC (GTAW-DC)
Industries Interests	Construction and Fabrication Heavy Equipment Railcar
Amperage	20 A – 330 A
Weldable Metals	Aluminum Stainless Steel Steel
Rated Carbon Diameter	1/4 in (6.4 mm)
Current Type	DC
Max Open Circuit Voltage	107 VDC
Portability	Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional)
Cold Weather Starting Aids	Glow Plugs
Engine Brand	Kubota
Engine Compliance	T4F
Engine Idle Speed	1800 RPM
Engine Weld Speed	Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output
Fuel Tank Size	11 Gallon
Fuel Type	Diesel
Horsepower	24.8 hp
Weld Output	CC/CV
Rated Output	CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle
Single Phase Auxiliary Continuous Power	10500 W
Single Phase Auxiliary Peak Power	12000 W
Sound Rating	74.7 dB @ idle and 80.2 dB @ max weld
Applications	Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Structural Welding
Warranty	3 Years Miller’s True Blue Warranty



SHIPPING DIMENSIONS
Height:	32.41 Inches
Width:	20.60 Inches
Length:	45.72 Inches
Weight:	611 Lb(s) 0 Oz

Spec Sheets

• Spec Sheet (English) – Trailblazer 330 Diesel
• Spec Sheet (Español) – Trailblazer 330 Diesel

Operator Information

• Owner’s Manual – Trailblazer 330 Diesel
• Parts Guide – Trailblazer 330 Diesel

Product Comparison

• Trailblazer vs Bobcat – Product Comparison
•
