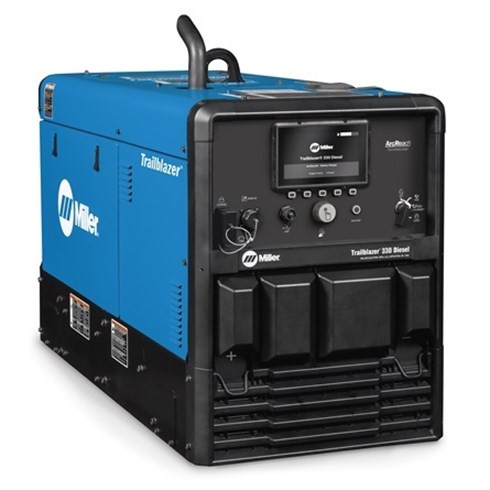

Miller Trailblazer® 330 Diesel Engine-Driven Welder (Kubota) w/ Excel™ Power & Battery Charge/Crank Assist
Miller Trailblazer® 330 Diesel Engine-Driven Welder (Kubota) w/ Excel™ Power & Battery Charge/Crank Assist
$21,029.00Current price is: $21,029.00. Original price was: $24,287.00.
13% offProduct Description
Miller Trailblazer® 330 Diesel Welder/Generator w/ Excel™ Power, Battery Charge/Crank Assist & Kubota Engine #907849003
Miller’s Trailblazer® 330 diesel engine-driven welder empowers professionals with unparalleled welding capabilities and unrivaled versatility. Equipped with a robust Kubota engine and Miller-exclusive Excel™ Power, this machine delivers an impressive full 120V of auxiliary power, even when the engine is idling. With its cutting-edge battery charge/crank assist option, the Trailblazer® offers a reliable solution for rejuvenating dead batteries or assisting with difficult engine startups.
This compact powerhouse outperforms its rivals in the 300-amp class, delivering exceptional welding and auxiliary power while maintaining impressive fuel efficiency and minimal noise levels. The Trailblazer® 330 ensures productive and profitable job sites, enabling professionals to tackle demanding welding projects with confidence and ease.
Try It For Yourself! Launch Miller’s Trailblazer 330 Simulator
What’s Included:
- Trailblazer® 330 Diesel (Kubota) w/Excel™ Power & Battery Charge/Crank Assist #907849003
- Not included: Weld Leads
Output:
- 12,000 W peak power (10,500 W continuous)
- DC stick: 20–330 A
- MIG/flux cored: 15–40 V
- DC TIG: 20–330 A
Applications:
- Fabrication
- Maintenance
- Repair
- Structural Steel Work
- Sheet Metal
- Pipe
Direct spool gun connection
Highlights
- Dynamic DIG™: Auto-adjusts current for smooth, consistent arcs based on material, fit-up, and welder technique.
- QuietPulse™: Reduces noise in DC pulse welding by smoothing transitions between background and peak amperage.
- ArcReach® Technology: Allows remote process adjustments at the weld site, using existing cables to control settings.
- Auto-Speed™ Technology: Adjusts engine speed to meet demand, reducing fuel, maintenance, and noise for safer jobs.
- Excel™ Power: Delivers 2,400 watts of pure, 120 V sine wave power at all speeds, lowering noise and emissions.
- Battery Charge/Crank Assist: Use the welder to charge dead batteries or jump engines, cutting equipment downtime.
Benefits of the Trailblazer 330 Diesel w/ Excel & Crank Assist #907849003:
- The digital interface quickens the machine setup and makes it less complicated.
- Enjoy easy arc starts and less spatter with exceptional arc performance.
- Separate weld and auxiliary power allow for full auxiliary power at any setting.
- Daily maintenance is made easy by the welder’s intuitive design.
- Designed and recommended for mechanics or anyone else responsible for a fleet of trucks or equipment.
Download literature of this machine:
| Trailblazer 330 Diesel w/ Excel & Crank Assist #907849003 – Specifications | |
|---|---|
| Processes | Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Pulsed TIG (GTAW-P) Stick (SMAW) TIG DC (GTAW-DC) |
| Industries Interests | Construction and Fabrication Heavy Equipment Railcar |
| Amperage | 20 A – 330 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Cold Weather Starting Aids | Glow Plugs |
| Engine Brand | Kubota |
| Engine Compliance | T4F |
| Engine Idle Speed | 1800 RPM |
| Engine Weld Speed | Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Diesel |
| Horsepower | 24.8 hp |
| Weld Output | CC/CV |
| Rated Output | CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 10500 W |
| Single Phase Auxiliary Peak Power | 12000 W |
| Sound Rating | 74.7 dB @ idle and 80.2 dB @ max weld |
| Applications | Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Structural Welding |
| Warranty | 3 Years Miller’s True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 32.41 Inches |
| Width: | 20.60 Inches |
| Length: | 45.72 Inches |
| Weight: | 611 Lb(s) 0 Oz |
