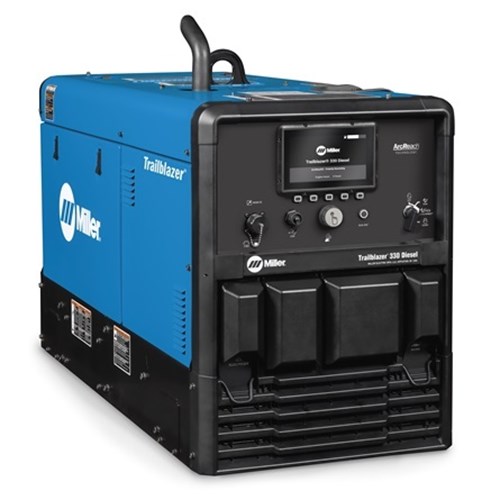

Miller Trailblazer® 330 Diesel Engine-Driven Welder w/ Excel™ Power & Polarity Reversing (Kubota)
Miller Trailblazer® 330 Diesel Engine-Driven Welder w/ Excel™ Power & Polarity Reversing (Kubota)
$22,895.00Current price is: $22,895.00. Original price was: $26,443.00.
13% offProduct Description
Miller Trailblazer® 330 Diesel Welder/Generator w/ Excel™ Power, Polarity Reversing, Wireless Interface Control & Kubota Engine #907849004
The Miller Trailblazer® 330 diesel engine-driven welder features Miller’s exclusive Excel™ Power, providing a full 120V power output even when idling, making it a versatile tool for various applications. Additionally, the polarity reversing capability allows for fine-tuning of welding characteristics.
With its robust Kubota engine, the Trailblazer® 330 delivers unbeatable arc performance and includes wireless interface control for ultimate convenience. As the top choice in the 300-amp class, it offers more welding and auxiliary power than any other compact machine, with impressive fuel efficiency and minimal noise levels.
Try It For Yourself! Launch Miller’s Trailblazer 330 Simulator
What’s Included:
- Trailblazer® 330 Diesel (Kubota) w/Excel™ Power & Polarity Reversing #907849004
- Not included: Weld Leads
Output:
- 12,000 W peak power (10,500 W continuous)
- DC stick: 20–330 A
- MIG/flux cored: 15–40 V
- DC TIG: 20–330 A
Applications:
- Fabrication
- Maintenance
- Repair
- Structural Steel Work
- Sheet Metal
- Pipe
Direct spool gun connection
Highlights
- Dynamic DIG™: Automatically adjusts current to clear shorts, delivering smoother, consistent arcs for all materials and techniques.
- QuietPulse™: Lowers noise in DC pulse welding by smoothing transitions between background and peak amperage.
- ArcReach®: Adjust settings remotely using existing weld cables, bringing control to the operator, not the machine.
- Auto-Speed™: Matches engine speed to demand, cutting fuel, noise, and maintenance costs for safer, efficient jobs.
- Excel™ Power: Provides 2,400 watts of pure 120 V power at all speeds, reducing noise and emissions.
- Wireless Interface Control: Control welding settings, process changes, and start/stop remotely for maximum convenience.
Benefits of the Trailblazer 330 Diesel w/ Excel, Polarity Reversing #907849004:

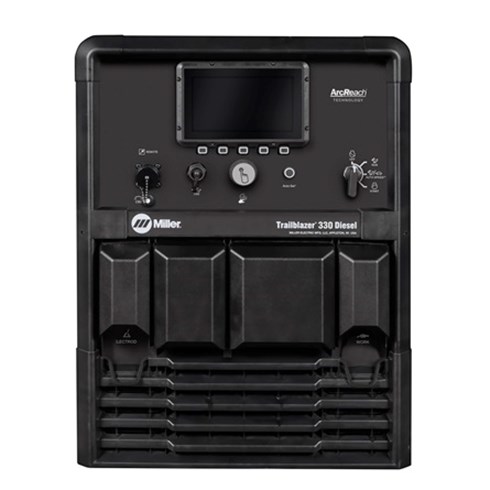

- The digital interface quickens the machine setup and makes it less complicated.
- Enjoy easy arc starts and less spatter with exceptional arc performance.

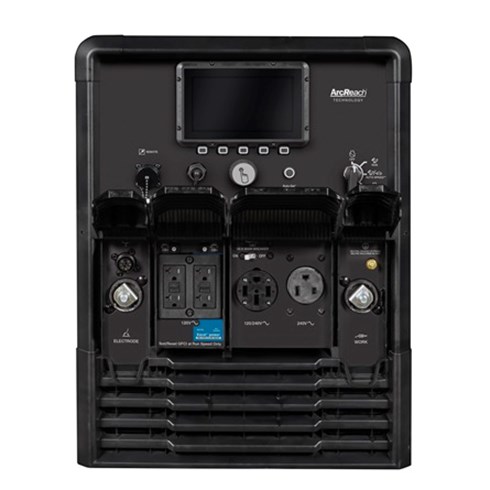

- Separate weld and auxiliary power allow for full auxiliary power at any setting.
- Daily maintenance is made easy by the welder’s intuitive design.
Download literature of this machine:
| Trailblazer® 330 Diesel w/ Excel™ & Polarity Reversing (Kubota) #907849004 – Specifications | |
|---|---|
| Processes | Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Pulsed TIG (GTAW-P) Stick (SMAW) TIG DC (GTAW-DC) |
| Industries Interests | Construction and Fabrication Heavy Equipment Railcar |
| Amperage | 20 A – 330 A |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Rated Carbon Diameter | 1/4 in (6.4 mm) |
| Current Type | DC |
| Max Open Circuit Voltage | 107 VDC |
| Portability | Lift Eye (Standard) Running Gear / Cart (Optional) Trailer (Optional) |
| Cold Weather Starting Aids | Glow Plugs |
| Engine Brand | Kubota |
| Engine Compliance | T4F |
| Engine Idle Speed | 1800 RPM |
| Engine Weld Speed | Advanced Auto-Speed(TM) technology: Varies engine speed from 1,800-3,600 rpm to match weld output |
| Fuel Tank Size | 11 Gallon |
| Fuel Type | Diesel |
| Horsepower | 24.8 hp |
| Weld Output | CC/CV |
| Rated Output | CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle |
| Single Phase Auxiliary Continuous Power | 10500 W |
| Single Phase Auxiliary Peak Power | 12000 W |
| Sound Rating | 74.7 dB @ idle and 80.2 dB @ max weld |
| Applications | Aluminum Welding Fabrication Field Welding Industrial Welding Mobile Fabrication & MRO Structural Welding |
| Warranty | 3 Years Miller’s True Blue Warranty |
SHIPPING DIMENSIONS |
|
| Height: | 32.41 Inches |
| Width: | 20.60 Inches |
| Length: | 45.72 Inches |
| Weight: | 611 Lb(s) 0 Oz |
Spec Sheets
Operator Information
Product Comparison
- Trailblazer vs Bobcat – Product Comparison
-
