Miller Trailblazer 330 EFI Engine-Driven Welder, Excel, Polarity Reversal, WIC Remote

Name: Miller Trailblazer 330 EFI Engine-Driven Welder, Excel, Polarity Reversal, WIC Remote
SKU: 907832006
Availability: InStock

0 customer reviews

Sold: 0

Miller Trailblazer 330 EFI Engine-Driven Welder, Excel, Polarity Reversal, WIC Remote

Miller Trailblazer 330 EFI Engine-Driven Welder, Excel, Polarity Reversal, WIC Remote - Image 2

Miller Trailblazer 330 EFI Engine-Driven Welder, Excel, Polarity Reversal, WIC Remote - Image 3

Miller Trailblazer 330 EFI Engine-Driven Welder, Excel, Polarity Reversal, WIC Remote - Image 4

Miller Trailblazer 330 EFI Engine-Driven Welder, Excel, Polarity Reversal, WIC Remote - Image 5

View details

Current price is: $13,122.00. Original price was: $16,634.00.

21% off

SKU: 907832006 Categories: Engine-Driven Welder Welder

Product Description

Miller Trailblazer 330 EFI, Excel, Polarity Reversal, WIC Remote #907832006

Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter job sites.

Polarity Reversing Technology

Advanced polarity reversing abilities allow seamless switching between DCEP (DC+) and DCEN (DC-) polarities. This flexibility empowers welders to effortlessly handle diverse welding tasks, ensuring top-notch performance across materials and techniques. With this feature, craftsmen achieve superior penetration or precise filler material deposition, enhancing efficiency and delivering exceptional results.

Excel™ Power

Miller Excel Power - Full Power at Idle Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20A) of 120V inverter-based, pure sine wave power at idle. With Excel power, you can operate jobsite tools like grinders and lights at a quieter, fuel-saving engine speed.

Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus, everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered.

Try It For Yourself! Launch Miller’s Trailblazer 330 Simulator

Applications:

Fabrication
Maintenance Repair
Structural Steel Work
Sheet Metal
Pipe

What’s Included:

Trailblazer welder/generator #907831
Not included: Weld Leads

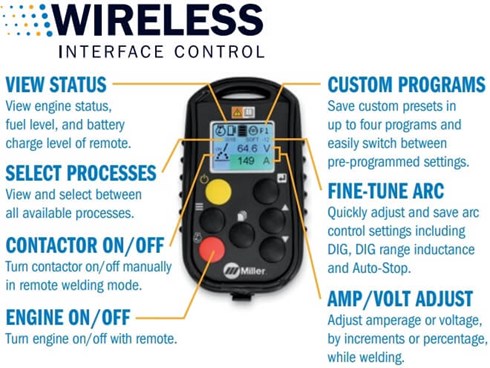

Miller Trailblazer 330 Wireless Interface Control Remote

Full control in the palm of your hand

Features of the Trailblazer 330 #907832006:

As with the previous model 211, the updated model has a Multi-Voltage Plug (MVP) that allows you to connect to either 120 or 230 V power receptacles without the use of any tools.
- Intuitive digital interface with Auto-Set™ makes it quick and easy to precisely set weld parameters for any process.
- Lighter and Smaller – The Trailblazer 330 weighs less than any other engine-driven welder in its class. It’s over 80 pounds lighter and 13% smaller than previous models, so it’s easier to move and takes up less space on trucks.
- Advanced Auto-Speed™ technology automatically varies engine speed from 1,800–3,600 rpm to match weld demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
- Predictive Maintenance
- Direct Connect Spool Gun Connection
- ArcReach® for parameter control at the wire feeder or pendant without needing a control cord.
- Dynamic DIG™ to optimize arc control for stick welding applications.
- Pulsed TIG with QuitePulse™ creates a slower, more fluid transition between background and peak amperage.
- Excel™ Power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle.
- Polarity reversing capability to easily switch polarity of the weld studs at the interface.
- Wireless Interface Control so you get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free.

Miller Trailblazer 330 Specifications
Welding Mode	CC/DC CV/DC
Process	Stick/TIG MIG/FCAW Battery charge/ crank assist (optional)
Amp/Volt Ranges	20 – 330 A 15-40 V 12/24 V
Rated Weld Output at 104° F (40° C)	330 A at 30 V, 100% duty cycle 325 A at 30.25 V, 100% duty cycle Charge: 150 A, Crank assist: 300 A
Single-Phase Auxiliary Power	Peak 12,000 watts Continuous 10,500 watts Excel™ power (optional) 2,400 watts, 20 A at 120 V, 60 Hz pure auxiliary power at idle speed and while welding
Sound Levels at 23 ft (7 m)	Weld 150 A load: 65 dB (90 Lwa) 330 A load: 73.5 dB (98.5 Lwa) Auxiliary power Excel power: 65 dB (90 Lwa) 12 kW standard power: 73.5 dB (98.5 Lwa)
