Miller XMT 650® ArcReach® Multi-Process Welder, CC/CV, Stationary Package w/ S-74 MPa Plus Wire Feeder (380/460V)

Name: Miller XMT 650® ArcReach® Multi-Process Welder, CC/CV, Stationary Package w/ S-74 MPa Plus Wire Feeder (380/460V)
SKU: 951000067
Availability: InStock

0 customer reviews

Sold: 0

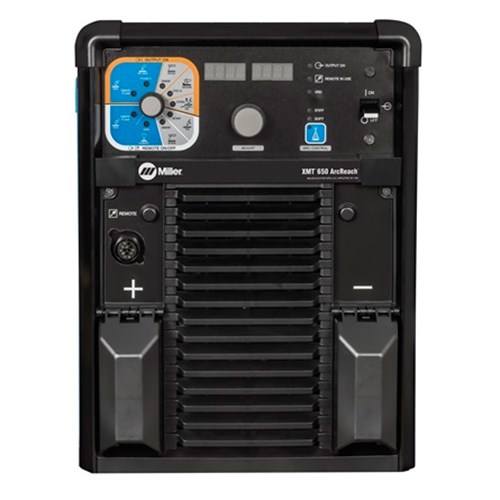

Miller XMT 650® ArcReach® Multi-Process Welder, CC/CV, Stationary Package w/ S-74 MPa Plus Wire Feeder (380/460V)

Miller XMT 650® ArcReach® Multi-Process Welder, CC/CV, Stationary Package w/ S-74 MPa Plus Wire Feeder (380/460V) - Image 2

Miller XMT 650® ArcReach® Multi-Process Welder, CC/CV, Stationary Package w/ S-74 MPa Plus Wire Feeder (380/460V) - Image 3

Miller XMT 650® ArcReach® Multi-Process Welder, CC/CV, Stationary Package w/ S-74 MPa Plus Wire Feeder (380/460V) - Image 4

Miller XMT 650® ArcReach® Multi-Process Welder, CC/CV, Stationary Package w/ S-74 MPa Plus Wire Feeder (380/460V) - Image 5

View details

Current price is: $16,650.00. Original price was: $19,229.00.

13% off

SKU: 951000067 Categories: MIG Welding Welder

Product Description

High-Output Miller XMT 650 ArcReach Stationary Package for Industrial Applications (380/460V) #951000067

The Miller XMT® 650 ArcReach® Systems Stationary Package is a powerful, multi-process welding solution ideal for industrial applications where stationary setups are essential. With a robust 650-amp output, this model is equipped to handle thick materials and high-deposition welding. The ArcReach® technology provides remote control directly from the feeder, allowing welders to make adjustments without returning to the power source—significantly enhancing productivity and safety on large job sites. Built to deliver stable arc performance, this system supports Stick, MIG, and Flux-Cored welding, ensuring versatility across applications in structural fabrication, shipbuilding, and heavy equipment repair.

Download literature of this machine:

2024 Spec Sheet – XMT 650 ArcReach Miller XMT Model Comparison

Highlights

650 Amp Rated Output: High-power output ideal for thick materials, heavy-duty welding, and industrial-scale projects.
ArcReach® Technology: Remote control capabilities allow welders to adjust settings from the feeder, reducing downtime and enhancing job site safety.
Stationary Configuration: Tailored for fixed-location setups, optimized for prolonged, intensive welding tasks.
Multiprocess Flexibility: Supports multiple welding processes, providing adaptability across varied tasks.

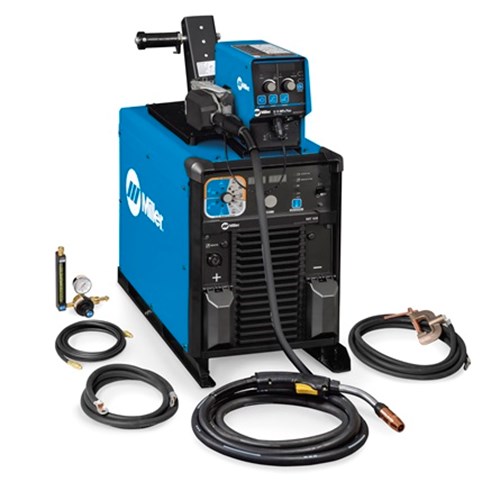

What’s Included

XMT 650 ArcReach Power Source
S-74 MPa Plus Wire Feeder
.035/.045 in. reversible V-groove drive rolls
Bernard® BTB Gun 400 A with AccuLock™ consumables
Industrial MIG 4/0 kit
Grounding Cable with Clamp
Power Cable and Connectors

Miller XMT 650® ArcReach® Systems Stationary Package 951000067 - What's Included

Processes & Output

Rated Output: 650 A at 44 VDC, 100% duty cycle

10–815 A Output in CC Mode

Stick (SMAW)
DC TIG (GTAW)
Submerged arc (SAW)
Air carbon arc (CAC-A) cutting and gouging (Rated: 3/8-inch carbons)

10–44 V in CV Mode

MIG (GMAW)
Flux-cored (FCAW)

Induction heating with ArcReach Heater only

Industries

Structural Steel Fabrication
Shipbuilding
Heavy Equipment Repair
Industrial Construction

Benefits of the Miller XMT 650 ArcReach Stationary Package

Improved Productivity: ArcReach technology minimizes trips to the power source, providing a more seamless workflow.
Rugged Durability: Built for stationary setups in industrial environments, offering reliable performance under continuous use.
Optimized for Thick Material Welding: High-output capacity is ideal for welding thicker materials in heavy-duty applications.

General Specifications – XMT 650® ArcReach® Systems Stationary Package
Processes	Air Carbon Arc Cutting and Gouging (CAC-A) Flux Cored (FCAW) MIG (GMAW) Stick (SMAW) Submerged Arc (SAW) TIG (GTAW)
Industries Interests	Heavy Equipment Manufacturing Mining Pipeline Railcar Shipbuilding
Input Voltage	380/400/440 V 460/480 V
Input Phase	3-Phase
Input Hz	50/60 Hz
Max Open Circuit Voltage	87 VDC
Other Applications	Welding Education and Training
